Your vehicle is equipped with a memory fuse to prevent battery discharge if your vehicle is parked without being operated for prolonged periods. Use the following procedures before parking the vehicle for prolonged periods.

1.Turn off the engine.

2.Turn off the headlights and tail lights.

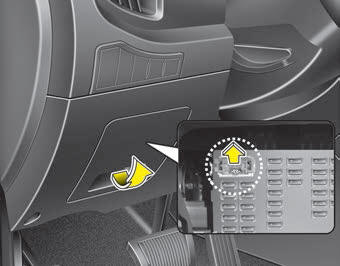

3.Open the drivers side panel cover and pull out the memory fuse.
