1.Turn the ignition switch and all other switches off.

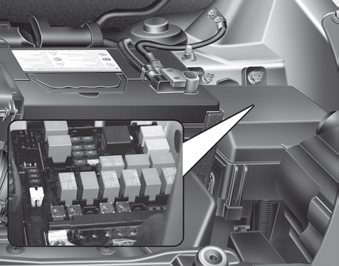

2.Remove the fuse panel cover by pressing the tab and pulling the cover up. When the blade type fuse is disconnected, remove it by using the clip designed for changing fuses located in the engine room fuse box. Upon removal, securely insert reserve fuse of equal quantity.
3.Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
4.Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
If it fits loosely, consult an authorized Kia dealer.
CAUTION - Fuse panel covers
After checking the fuse panel in the engine compartment, securely install the fuse panel cover. If not, electrical failures may occur from water contact.
Instrument Cluster: Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the cluster fascia panel (A).
3.
Remove the cluster assembly (A) after loosening 4 screws.
4.
Disconnect the cluster ...
Heater Unit: Components and Components Location
Component Location
Components
1. Heater Case (LH)2. Heater Case (RH)3. Heater Lower Case4. Separator5. Shower Duct6. Heater Core7. Evaporator Core8. Evaporator Sensor9. Vent Door10. Vent Door11. ...
