Kia Sportage: Power Seat Control Switch: Repair procedures
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Seat Electrical / Power Seat Control Switch: Repair procedures
| Inspection |
| 1. |

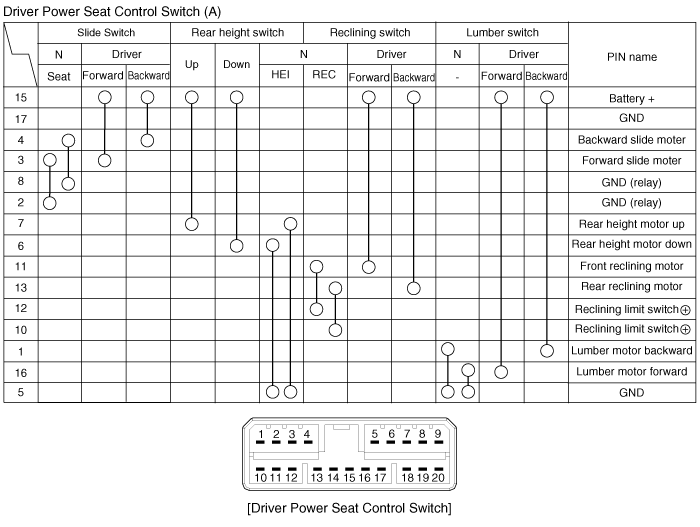

With the power seat switch in each position, make sure that
continuity exists between the terminals below. If continuity is not as
specified, replace the power seat switch.
|
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the power seat recliner cover.
(Refer to the BD group - "Front seat") |
| 3. |
Remove the power seat control switch (A).
|
| Installation |
| 1. |
Install the power seat control switch after connecting the connector. |
| 2. |
Install the recliner cover and front power seat. |
