Kia Sportage: Pressure Sensor: Repair procedures - Coupling Assembly - 4 Wheel Drive (4WD) System - Kia Sportage SL Service & Repair ManualKia Sportage: Pressure Sensor: Repair procedures

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / 4 Wheel Drive (4WD) System / Coupling Assembly / Pressure Sensor: Repair procedures

Inspection

If you have trouble code related to the pressure sensor (P1825, P1826, P1827, P1828), check pressure sensor according to the inspection process.

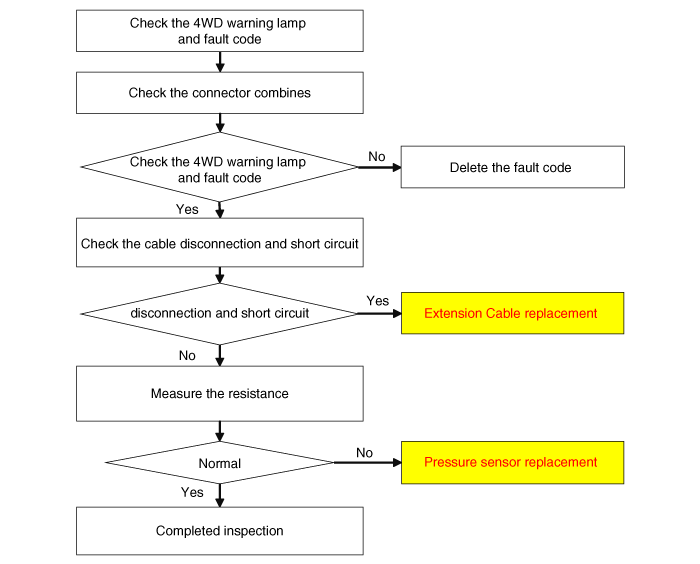

Pressure Sensor Inspection Procedure

Measure the resistance of pressure sensor
1.
Turn ignition switch OFF.
2.
Disconnect the pressure sensor connector.
3.
Measure resistance between sensor terminal and terminal.
4.
Check the measured resistance. (Refer to table)
Terminal
Resistance
PIN 2 – PIN 3
2.755 ~ 4.133 k?
PIN 1 – PIN 3
1.892 ~ 2.838 k?
PIN 1 – PIN 2
1.714 ~ 2.838 k?

Removal
1.
Remove the coupling assembly.
(Refer to "coupling assembly" in 4WD group)
2.
Remove the extension Cable (A).

3.
Remove the pressure sensor (A) with 24mm socket.

•
Keep going horizontal state to prevent leaks during remove the pressure sensor.
Tightening torque:
7.8 ~ 9.8 N.m (0.8 ~ 1.0kgf.m, 5.8 ~ 7.2 lb-ft)

Installation

•
Check the cleanliness of the pressure sensor before installation.
•
Check the pressure sensor O-ring (A).

1.
Installation is the reverse of removal.
