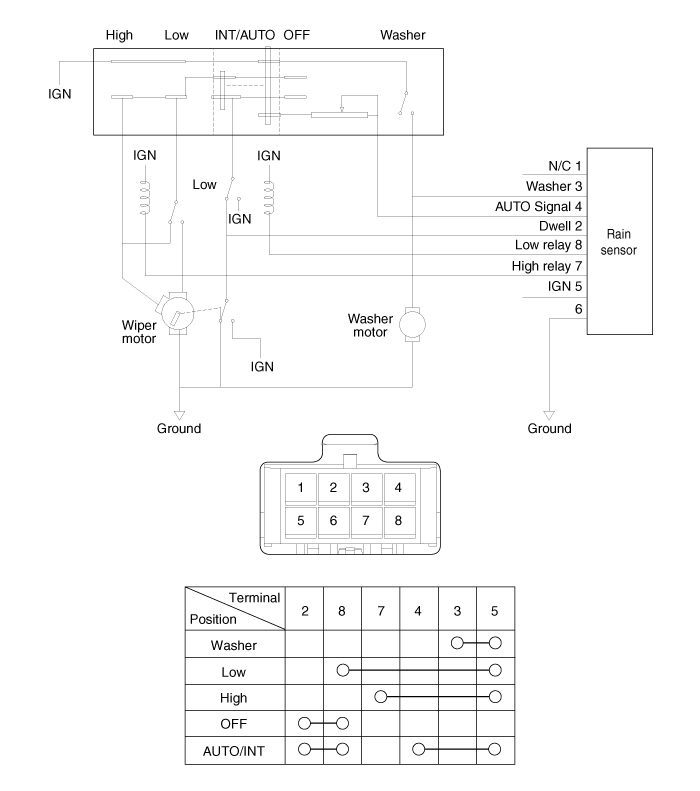

Kia Sportage: Rain Sensor: Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Windshield Wiper/Washer / Rain Sensor: Schematic Diagrams
