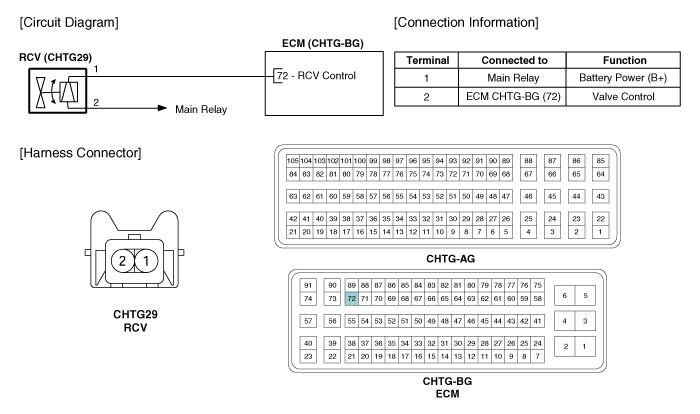

Kia Sportage: RCV Control Solenoid Valve: Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Control / Fuel System / Engine Control System / RCV Control Solenoid Valve: Schematic Diagrams

RCV Control Solenoid Valve: Specifications

Specification ItemSpecificationCoil Resistance (?)28.3 ~ 31.1 [20°C(68°F)] ...

RCV Control Solenoid Valve: Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the RCV control solenoid valve connector. 3. Measure resistance between the valve terminals 1 and 2. 4. Check that the resista ...
