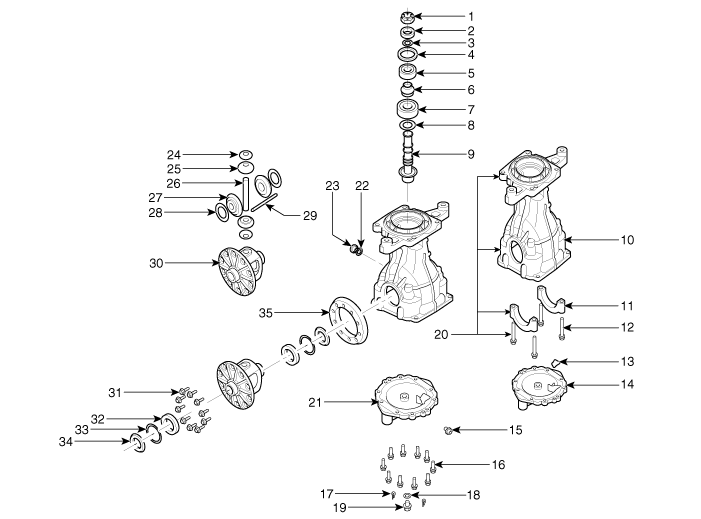

Component

1. Drive pinion nut
2. Oil seal
3. O-ring
4. Oil seal
5. Front bearing
6. Spacer
7. Rear bearing
8. Inner shim
9. Drive pinion gear
10. Differential carrier
11. Bearing cap
12. Bearing cap bolt
13. Plate baffle
14. Carrier cover
15. Vent plug
16. Cover fix bolt
17. Dower pin
18. Filler gasket
19. Filler plug
20. Carrier sub assembly
21. Cover sub assembly
22. Drain plug gasket
23. Drain plug
24. Diff pinion washer

25. Diff pinion
26. Diff shaft
27. Diff gear
28. Diff gear washer
29. Lock pin
30. Diff case
31. Ring gear bolt
32. Diff bearing
33. Diff shim
34. Diff oil seal
35. F/driven gear
