Kia Sportage: Rear Hub - Carrier: Components and Components Location - Rear Axle Assembly - Driveshaft and axle - Kia Sportage SL Service & Repair ManualKia Sportage: Rear Hub - Carrier: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Driveshaft and axle / Rear Axle Assembly / Rear Hub - Carrier: Components and Components Location

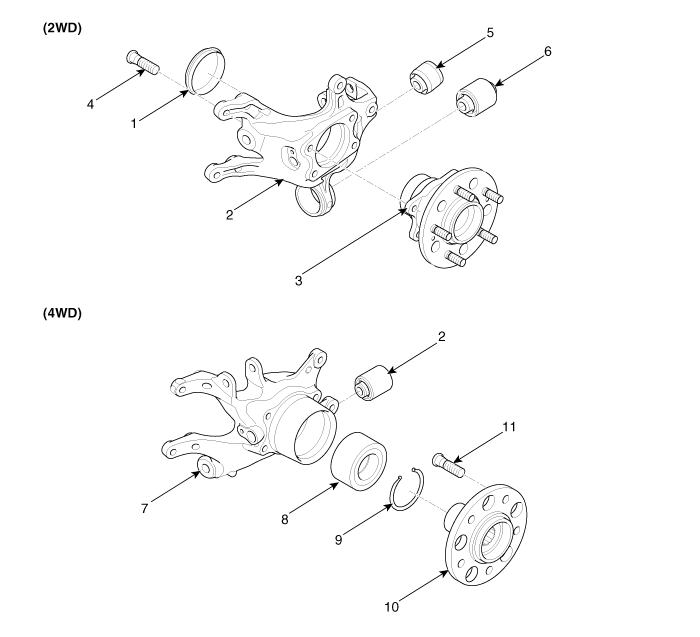

Components

1. Hub cover
2. Carrier assembly
3. Hub & bearing assembly
4. Hub mounting bolt
5. Bushing
6. Bushing
7. Carrier assembly
8. Bearing
9. Snap ring
10. Hub assembly
11. Hub bolt
12. Bushing
