Kia Sportage: Starter: Schematic Diagrams - Starting System - Engine Electrical System - Kia Sportage SL Service & Repair ManualKia Sportage: Starter: Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Electrical System / Starting System / Starter: Schematic Diagrams

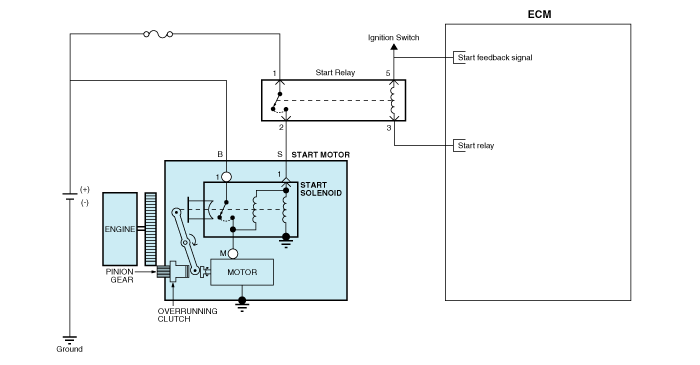

Circuit Diagram

Starter: Components and Components Location
Components 1. Front housing2. Starter solenoid assembly3. Lever4. Lever packing5. Planet shaft assembly6. Planetary gear assembly7. Packing8. Shield9. Amature assembly10. Brush holder assembly11. ...

Starter: Repair procedures
Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal (A). Tightening torque : 4.0 ~ 6.0N.m (0.4 ~ 0.6kgf.m, 3.0 ~ 4.4lb-ft) 3. Remove the ...
