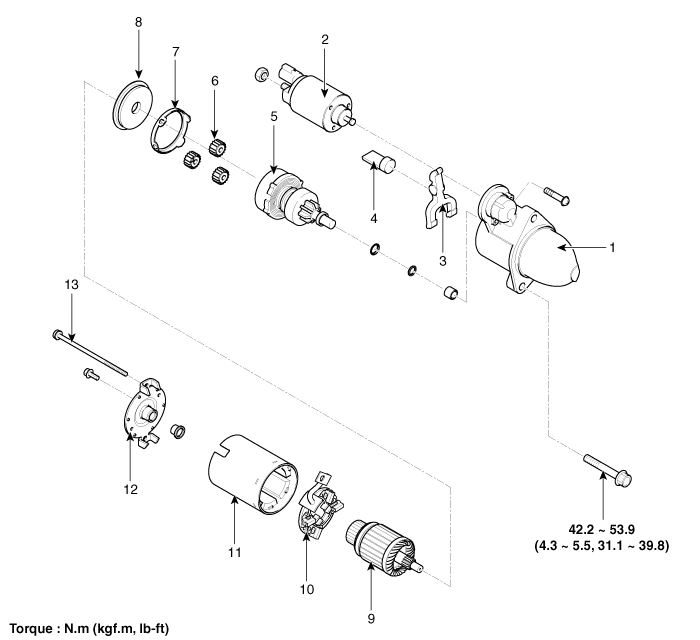

Components

1. Front housing
2. Starter solenoid assembly
3. Lever
4. Lever packing
5. Planet shaft assembly
6. Planetary gear assembly
7. Packing
8. Shield
9. Amature assembly
10. Brush holder assembly
11. Yoke assembly
12. Rear housing
13. Through bolt
