Kia Sportage: Timing Chain: Components and Components Location
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Mechanical System / Timing System / Timing Chain: Components and Components Location

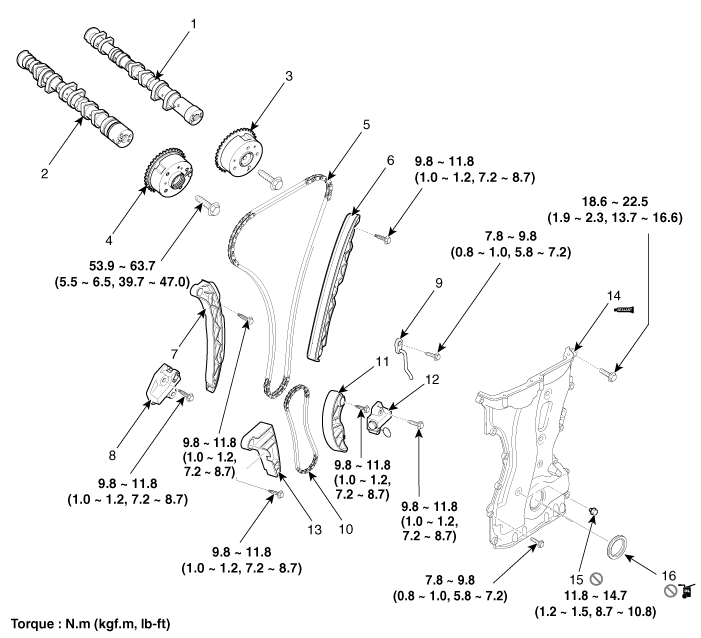

| Components |
| 1. Intake camshaft 2. Exhaust camshaft 3. Intake CVVT assembly 4. Exhaust CVVT assembly 5. Timing chain | 6. Timing chain guide 7. Timing chain tensioner arm 8. Timing chain tensioner 9. Timing chain oil jet 10. Balance shaft chain | 11. Balance shaft chain tensioner arm 12. Balance shaft chain tensioner 13. Balance shaft chain guide 14. Timing chain cover 15. Service hole bolt 16. Crankshaft front oil seal |
Timing System
...
Timing Chain: Repair procedures
Removal
•
Use fender covers to avoid damaging painted surfaces.
•
To avoid damage, unplug the wiring connectors carefully while holding the connec ...
