Kia Sportage: Transaxle Oil Temperature Sensor: Schematic Diagrams - Automatic Transaxle Control System - Automatic Transaxle System - Kia Sportage SL Service & Repair ManualKia Sportage: Transaxle Oil Temperature Sensor: Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Automatic Transaxle System / Automatic Transaxle Control System / Transaxle Oil Temperature Sensor: Schematic Diagrams

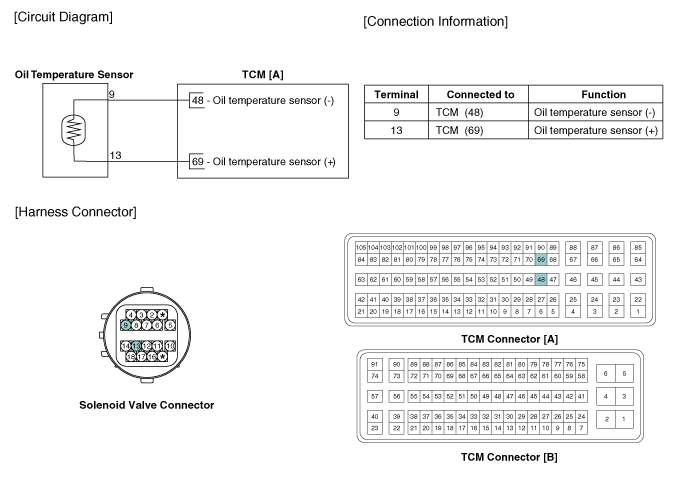

Circuit Diagram

Transaxle Oil Temperature Sensor: Specifications
Specifications ? Type: Negative Thermal Coefficient Type Temp.[(°C)°F]Resistance (k?)(-40)-4048.1(-20)-4.015.6(0)32.05.88(20)68.02.51(40)104.01.11(60)140.00.61(80)176.00.32(100)212.00.18(120)248 ...

Transaxle Oil Temperature Sensor: Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Remove the air duct (A). 3. Remove the air cleaner assembly. (1) Disconnect the breather hose (A) and brake booster intensifier hose. (2) ...
