Kia Sportage: Troubleshooting
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Audio / Troubleshooting
| Troubleshooting |

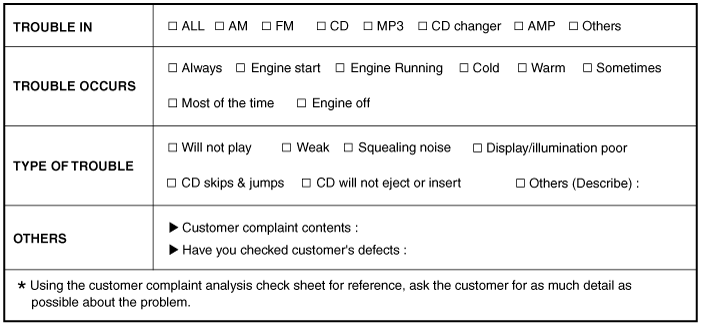

| Customer Complaint Analysis Check Sheet |

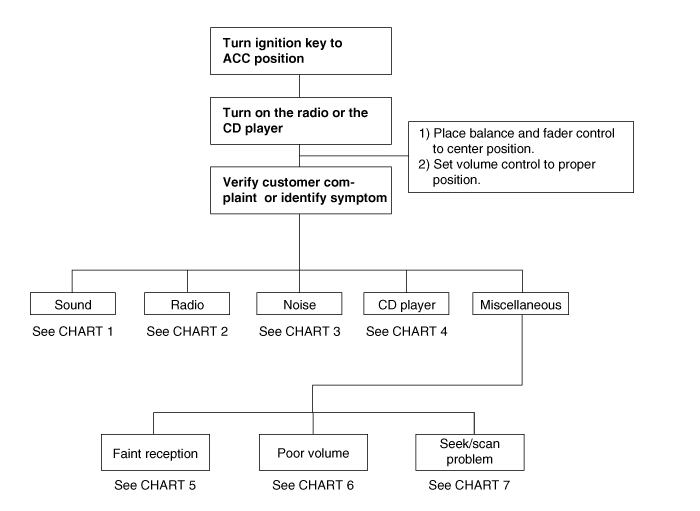

There are six areas where a problem can occur: wiring
harness, the radio, the CD player, and speaker. Troubleshooting enables
you to confine the problem to a particular area.

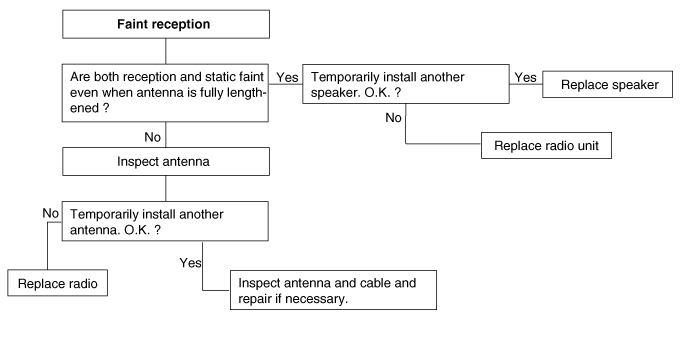

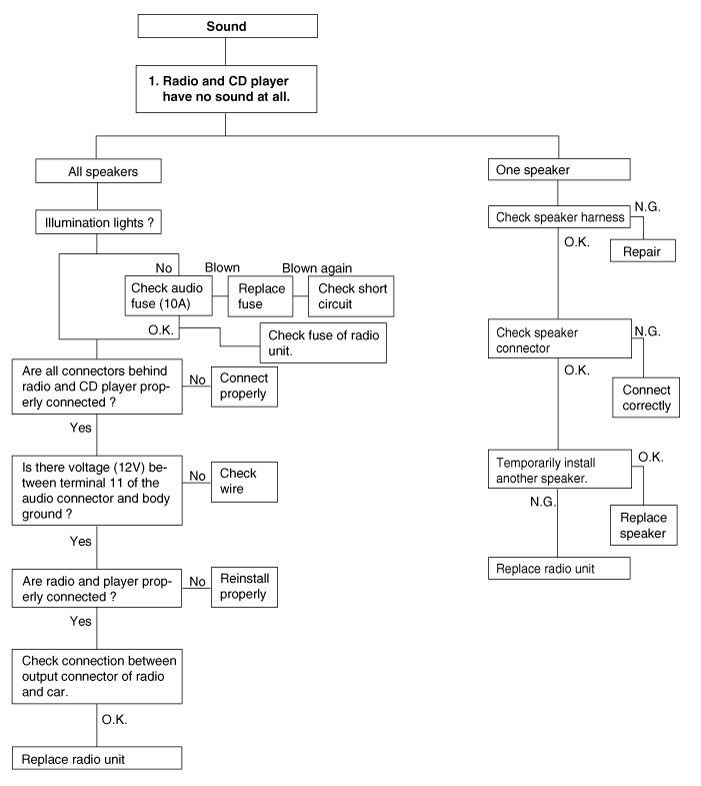

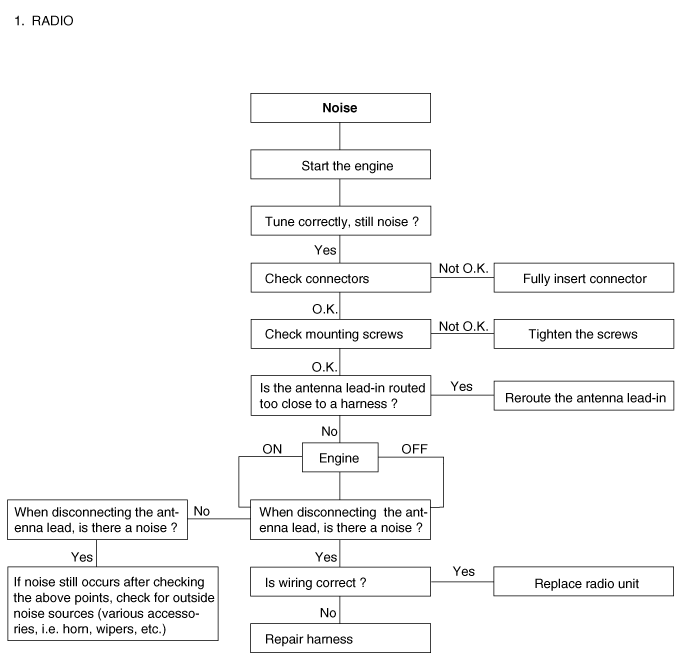

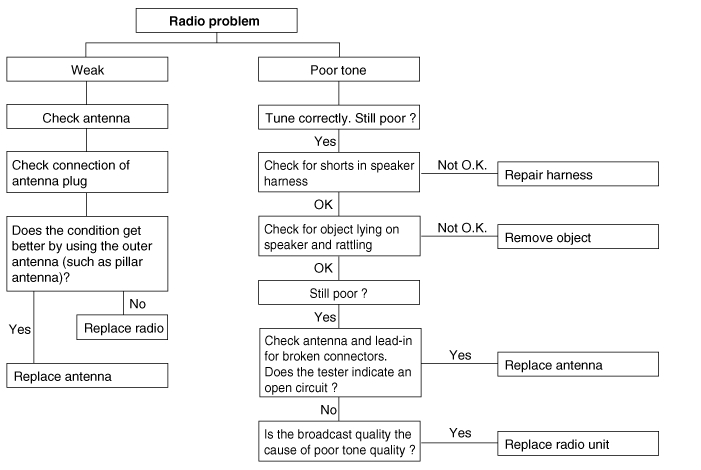

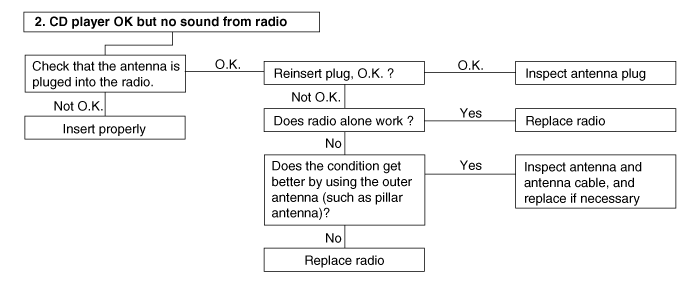

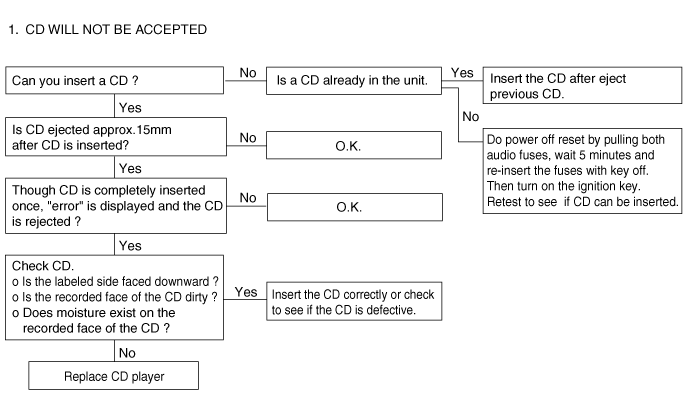

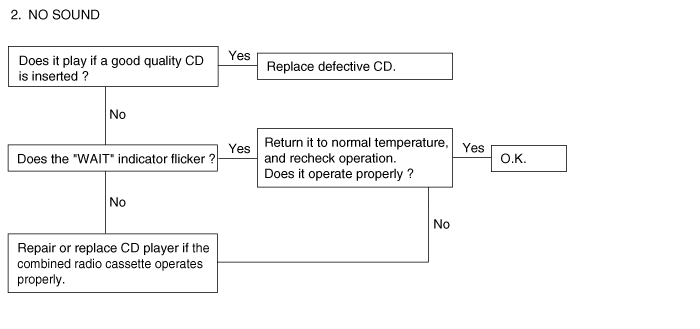

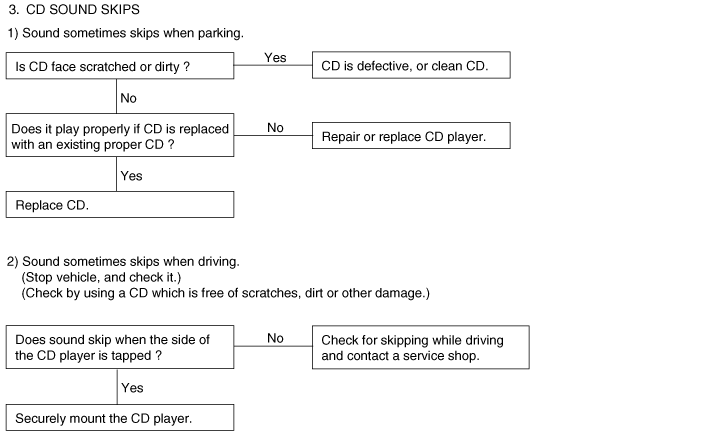

| Chart 1 |
| Chart 2 |
| Chart 3 |
| Chart 4 |
| Chart 5 |
| Chart 6 |

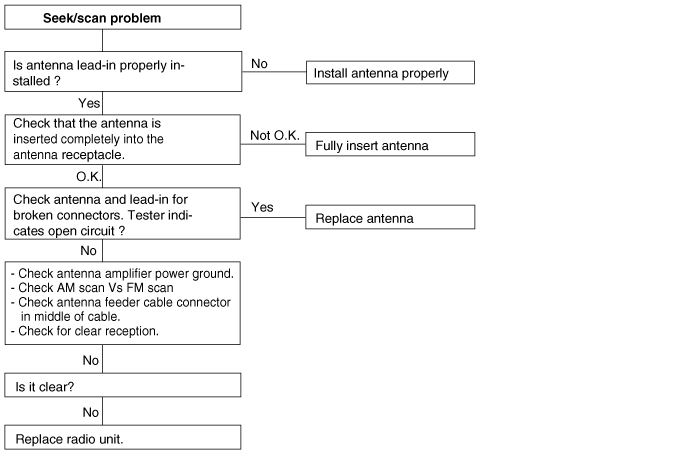

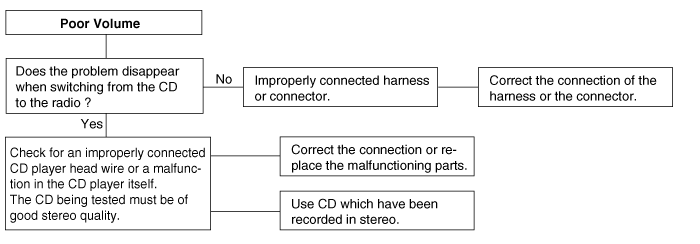

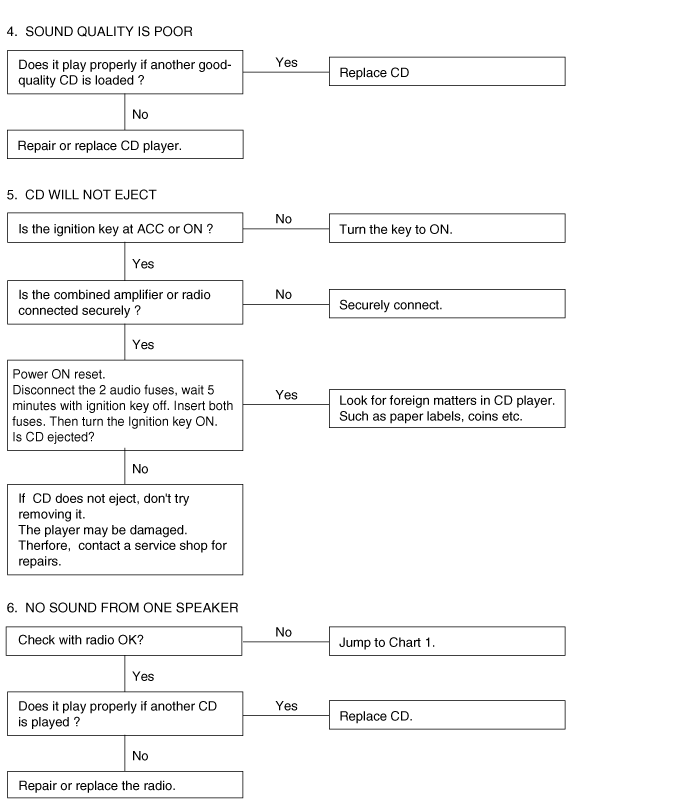

| Chart 7 |
AUX(Auxiliary) Jack: Repair procedures
Removal
1.
Remove the knob. Remove the floor console upper cover (A) using the appropriate tool.
(Refer to the BD group - "Console")
2.
Loosen screws (2EA) and remove the floor console tray ( ...
