Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the center fascia panel.
(Refer to BE - "Audio")
3.
Remove the heater and A/C controller (A) after disconnecting the connector (B).


Take care not to damage the hook when removing the heater and A/C controller.
Installation
1.
Install the heater and A/C controller.
2.
Install the center fascia panel.
Inspection
1.
The windshield deicer switch inputs can be checked using the GDS.
2.
To check the input value of windshield deicer switch, select option "BCM".
3.

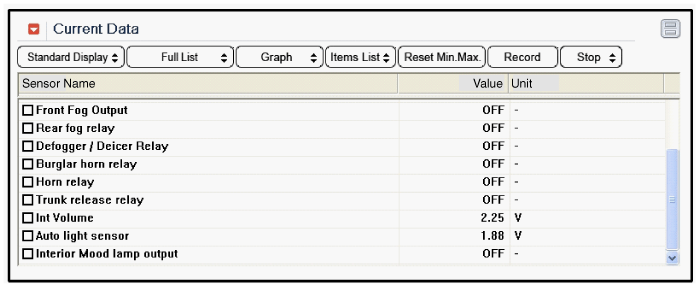

Select option "Current Data".

4.

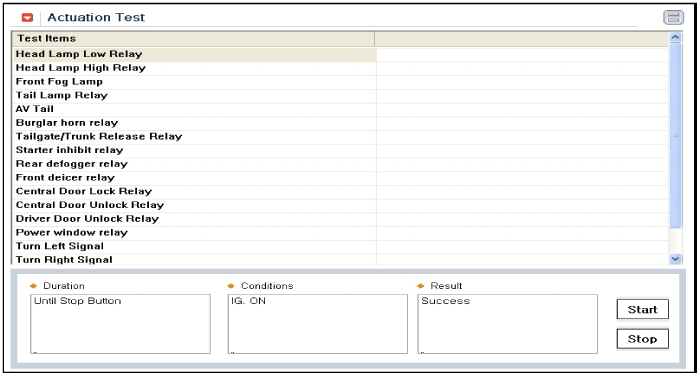

To check the input value of windshield deicer switch in force mode, select option.
