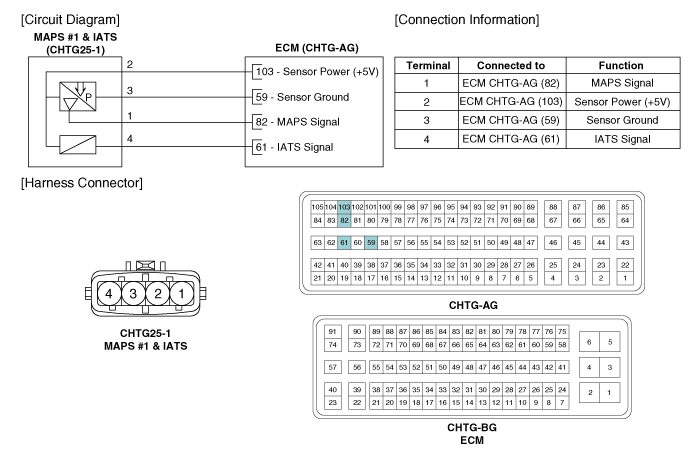

Kia Sportage: Intake Air Temperature Sensor (IATS): Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Control / Fuel System / Engine Control System / Intake Air Temperature Sensor (IATS): Schematic Diagrams

Intake Air Temperature Sensor (IATS): Specifications

Specification TemperatureResistance (k?)°C°F-40-4040.93 ~ 48.35-20-413.89 ~ 16.030325.38 ~ 6.0910503.48 ~ 3.9020682.31 ~ 2.57401041.08 ~ 1.21501221.56 ~ 1.74601400.54 ~ 0.62801760.29 ~ 0.34 ...

Intake Air Temperature Sensor (IATS): Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the IATS connector. 3. Measure resistance between the IATS terminals 3 and 4. 4. Check that the resistance is within the speci ...
