Kia Sportage: Blower Motor: Repair procedures
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Heating,Ventilation, Air Conditioning / Blower / Blower Motor: Repair procedures
| Inspection |
| 1. |
Connect the battery voltage and check the blower motor rotation.
|
| 2. |
If the blower motor is not operating when voltage is applied,
substitute with a known-good blower motor and check for proper
operation. |
| 3. |
If the problem is corrected, replace the blower motor. |
| Replacement |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |

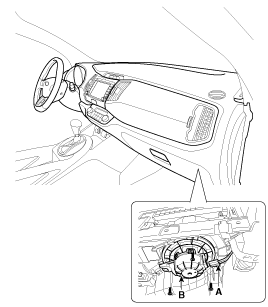

Disconnect the connector (A) of the blower motor. |
| 3. |
Remove the blower motor (B) after loosening the mounting screws.
|
| 4. |
Installation is the reverse order of removal. |
