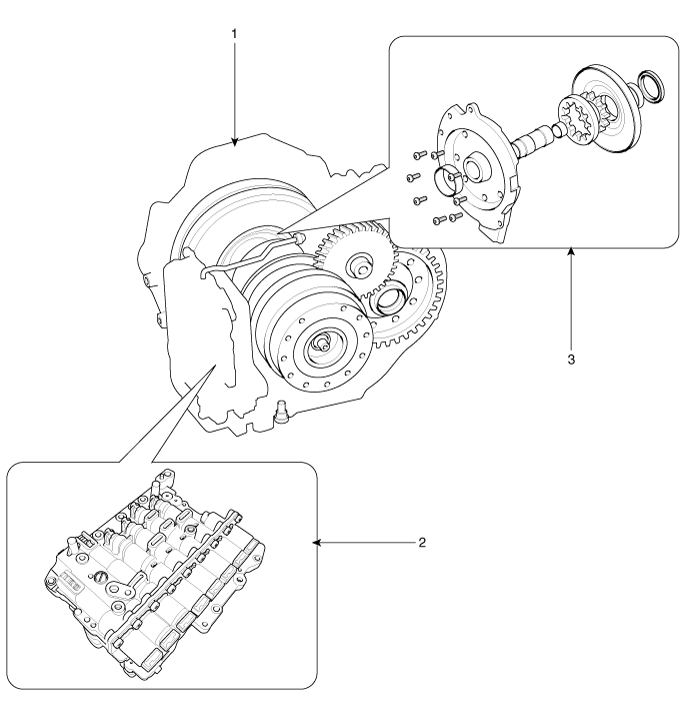

Components Location

1. Automatic transaxle
2. Valve body assembly
3. Oil pump assembly

Description and Operation
Description The hydraulic system consists of oil, an oil filter, an oil pump, and a valve body (valves and solenoid valves). The oil pump is powered by the engine. ATF passes through the oil filt ...

Oil Pump: Description and Operation
Description The oil pump is built-in as a single unit with the 26 Brake chamber. Rotation of the pump builds the hydraulic pressure needed for the lubrication of the various parts of the transa ...
