Kia Sportage: Compressor: Repair procedures - Air Conditioning System - Heating,Ventilation, Air Conditioning - Kia Sportage SL Service & Repair ManualKia Sportage: Compressor: Repair procedures

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Heating,Ventilation, Air Conditioning / Air Conditioning System / Compressor: Repair procedures

Removal
1.
If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off.
2.
Disconnect the negative cable from the battery.
3.
Recover the refrigerant with a recovery/charging station.
4.
4. Loosen the drive belt.
(Refer to EM group - "Drive belt")
5.
Loosen the mount bolts and then remove the under cover (A).

6.
Remove the bolts, then disconnect the suction line (A) and discharge line (B) from the compressor. Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination.

7.
Disconnect the compressor clutch connector, and then remove mounting bolts and the compressor(B).

Installation
1.
Make sure of the length of compressor mounting bolts, and then tighten it A>B>C>D order.
Tightening torque :
20.0~32.9N.m (2.04~3.36kgf.m, 14.7~24.3lbf.ft)

2.
Install in the reverse order of removal, and note these items.
–
If you''re installing a new compressor, drain all the refrigerant oil from the removed compressor, and measure its volume, Subtract the volume of drained oil from 120cc(4.20 oz.) the result is the amount of oil you should drain from the new compressor (through the suction fitting).
–
Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-134a to avoid leakage.
–
To avoid contamination, do not return the oil to the container once dispensed, and never mix it with other refrigerant oils.
–
Immediately after using the oil, replace the cap on the container and seal it to avoid moisture absorption.
–
Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash it off immediately.
–
Adjust the drive belt (Refer to HA-14)
–
Charge the system and test its performance.
Inspection
Field Coil
[Operation]
1.
Remove the compressor.
2.
Check operation of the magnetic clutch. Connect the compressor connector terminal "3" to the battery (+) terminal and the ground battery (-) terminal to the compressor body. Check the magnetic clutch operating noise to determine the condition.

NO
Description
NO
Description
1
ECV (+)
3
A/C Clutch (+)
2
ECV (-)



[Resistance]
1.
Disconnect the ECV connector from the compressor.
2.
Measure resistance between compressor body and terminal "3" of the ECV connector.
Resistance Specification : 2.8 ~ 3.2?


ECV resistance may be slightly higher or lower than the specification, depending on the temperature of the ECV.

•
Be aware of ECV Bent Pin.
•
Plug / Unplug the connector carefully.

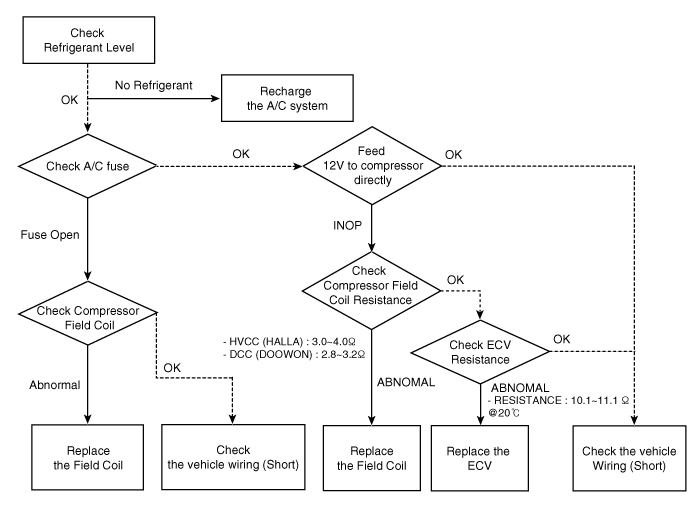

Compressor Field Coil check procedure (Only Clutch Type)

Electronic Control Valve Compressor Inspection (Tester)
1.
Disconnect the ECV connector from the compressor.
2.
Measure resistance between terminal "+" and "-" of the ECV connector.
Resistance Specification (@ 25°C / 77°F) : 10.1~11.1?

NO
Description
NO
Description
1
ECV (+)
3
A/C Clutch (+)
2
ECV (-)




ECV resistance may be slightly higher or lower than the specification, depending on the temperature of the ECV.

•
Be aware of ECV Bent Pin.
•
Plug / Unplug the connector carefully.
Disassembly
1.
Remove the front left tire (A).

2.
Loosen the mount bolts and then remove the under cover (A).

3.
Remove the engine side cover (A).

4.
Remove the wheel house (A).

5.
Remove the center bolt (A) while holding the disc & hub assembly with SST( 09977-29000).
Tightening torque :
10~15N.m (1.02~1.53kgf.m, 7.37~11lbf.ft)

6.
Remove the disc & hub assembly (A).

7.
Loosen the drive belt.
(Refer to EM group - "Drive belt")
8.
Disconnect the retainer ring (A) and then remove the pulley (B).

–
Be careful not to damage the pulley (B) and compressor during removal/installation.
–
Once retainer ring (A) is removed, replace it with a new one.

9.
Remove the retainer ring (B) and then remove the field coil (C) . Be careful not to damage the coil and compressor.

10.
To prepare work space, loosen the compressor mounting bolts.
11.
Disconnect the connector and ground screw and than remove the field coil (A).

12.
Reassemble the compressor clutch in the reverse order of disassembly, and note these items :
–
Clean the pulley and compressor sliding surfaces with non-petroleum solvent.
–
Install new retainer rings, and make sure they are fully seated in the groove.
–
Make sure that the pulley turns smoothly after its reassembled.
Compressor: Components and Components Location
Components 1. Bolt2. Disc & Hub Assembly 3. Retainer Ring (Pulley)4. Pulley5. Retainer Ring (Field coil)6. Field Coil7. Compressor Assembly ...
