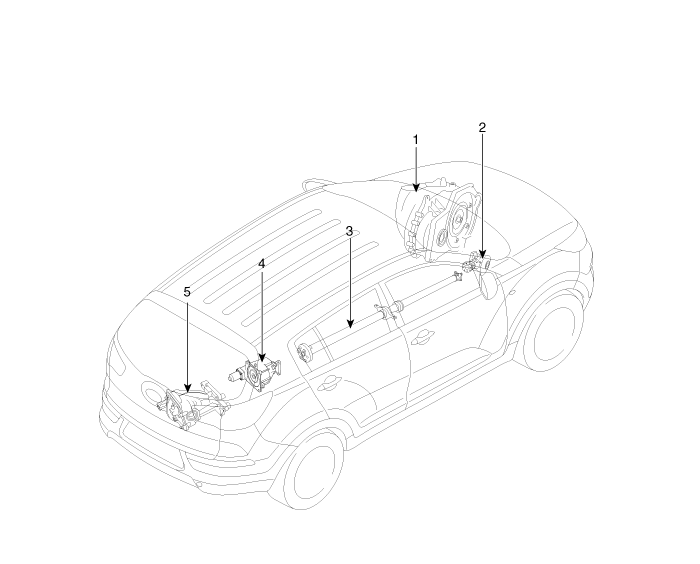

Component Location

1. Automatic transaxle
2. Transfer assembly
3. Propeller shaft
4. Coupling assembly
5. Differential assembly

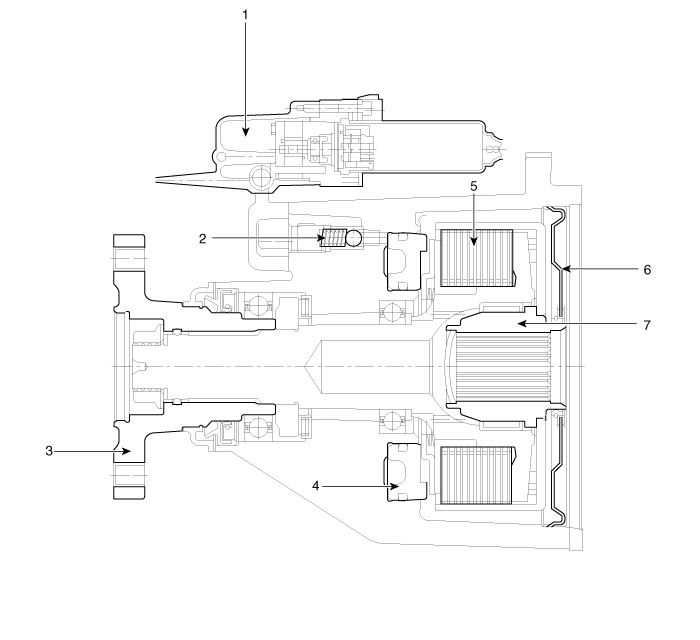

Components

1. Actuator
2. Bleed valve
3. Flange & Input shaft
4. Piston
5. Clutch pack
6. Oil seal cover
7. Hub

Direct Electro Hydraulic Actuator Coupling: Description and Operation
Description 4WD ECU processes signals from various sensors and determines the current road and driving conditions. The ECU then utilizes this information to implement precision control over th ...

Direct Electro Hydraulic Actuator Coupling: Repair procedures
Inspection     All units are filled up with coupling fluid (ultra-low viscosity ATF) prior to shipping. Inspection, fill-up, and replacement of coupling fluid is theref ...
