Kia Sportage: Electric Waste Gate Actuator (EWGA): Schematic Diagrams - Engine Control System - Engine Control / Fuel System - Kia Sportage SL Service & Repair ManualKia Sportage: Electric Waste Gate Actuator (EWGA): Schematic Diagrams

Third generation SL (2010Ц2016) / Kia Sportage SL Service & Repair Manual / Engine Control / Fuel System / Engine Control System / Electric Waste Gate Actuator (EWGA): Schematic Diagrams

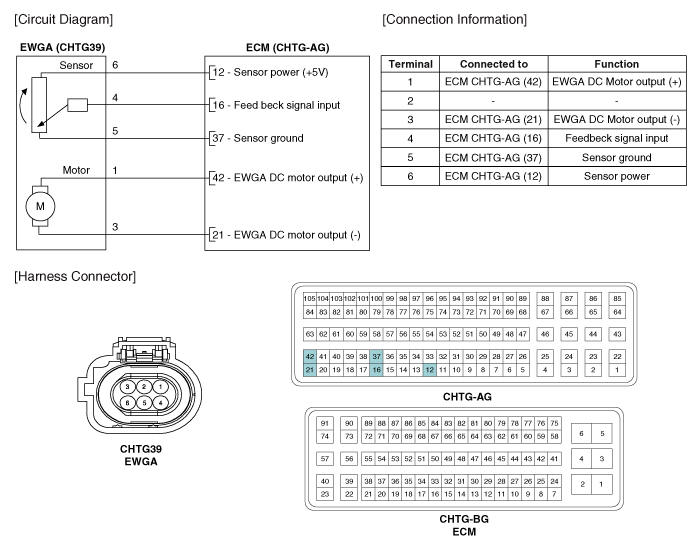

Circuit Diagram

Electric Waste Gate Actuator (EWGA): Troubleshooting
Signal Waveform ...

Electric Waste Gate Actuator (EWGA): Repair procedures
Inspection [Motor] 1. Turn ignition switch OFF. 2. Disconnect the EWGA connector. 3. Check that the EWGA is stuck by foreign material. 4. Measure resistance between motor (+) and ( ...
