Third generation SL (2010–2016) / Kia Sportage SL Owners Manual / Your vehicle at a glance / Engine compartment

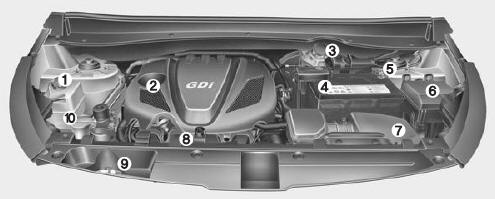

GDI engine

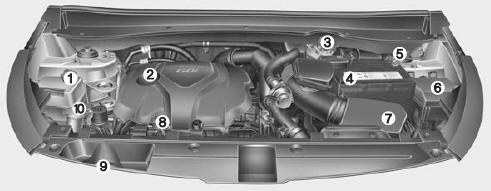

■ T-GDI engine

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake/clutch* fluid reservoir
4. Positive battery terminal
5. Negative battery terminal
6. Fuse box
7. Air cleaner
8. Engine oil dipstick
9. Radiator cap
10. Windshield washer fluid reservoir
