Kia Sportage: Exhaust Manifold: Components and Components Location
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Mechanical System / Intake And Exhaust System / Exhaust Manifold: Components and Components Location

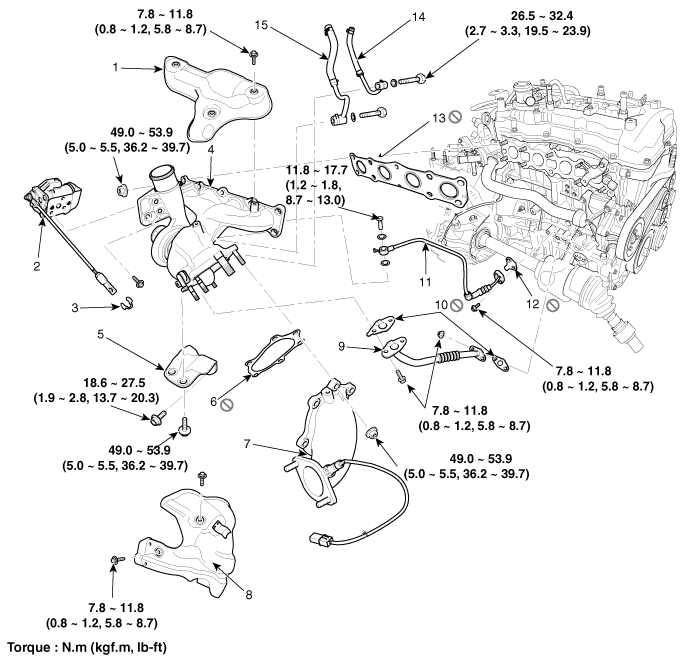

| Components |
| 1. Hear protector 2. EWGA(Electric Waste Gate Actuator) 3. C-ring 4. Turbo manifold module 5. Turbocharger stay 6. Trubo adapter gasket 7. Turbo adapter | 8. Turbo adapter heat protector 9. Oil drain pipe assembly 10. Turbocharge oil drain gasket 11. Oil feed pipe & hose assembly 12. Oil drain gasket 13. Exhaust manifold gasket 14. Turbocharger water feed hose 15. Turbocharger water drain hose |
Intake Manifold: Repair procedures
Removal and Installation
1.
Remove the engine cover.
2.
Disconnect the battery negative terminal (A).
Tightening torque
4.0 ~ 6.0N.m (0.4 ~ 0.6kgf.m, 3.0 ~ 4.4lb-ft)
3.
Remove the ai ...
Exhaust Manifold: Repair procedures
Removal and Installation
1.
Remove the engine cover.
2.
Disconnect the battery negative terminal (A).
Tightening torque
4.0 ~ 6.0N.m (0.4 ~ 0.6kgf.m, 3.0 ~ 4.4lb-ft)
3.
Disconnect t ...
