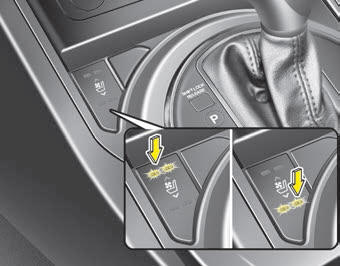

Type A
The seat heater is provided to warm the front seats during cold weather. With the ignition switch in the ON position, push either of the switches to warm the driver's seat or the front passenger's seat.
During mild weather or under conditions where the operation of the seat heater is not needed, keep the switches in the OFF position.
✽ NOTICE
With the seat heater switch in the ON position, the heating system in the seat turns off or on automatically depending on the seat temperature.

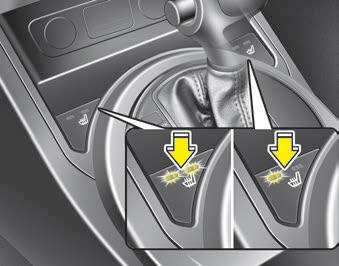

Type B (with air ventilation, if equipped)
The temperature setting of the seat changes according to the switch position.
CAUTION - Seat damage
WARNING - Seat warmer burns
The seat warmer may cause burns, even at low temperatures, if used over a long period of time. Never allow passengers who may not be able to take care of themselves to be exposed to the risk of seat heater burns. These include:
1. Infants, children, elderly or disabled persons, or hospital outpatients
2. Persons with sensitive skin or those that burn easily
3. Fatigued individuals
4. Intoxicated individuals
5. Individuals taking medication that can cause drowsiness or sleepiness (sleeping
pills, cold tablets, etc.)
Hands Free Switch: Repair procedures
Inspection
1.
Check the handsfree remote control switch for resistance between No.3 and No.4 terminals in each switch position.
[Call + Hang Up]
SwitchConnector terminalResistance (±5%) Output ...
Sunvisor
Use the sunvisor to shield direct light through the front or side windows.
To use the sunvisor, pull it downward.
To use the sunvisor for the side window, pull it downward, unsnap it from the
br ...
