Kia Sportage: Front windshield wiper blade - Blade replacement - Wiper blades - Maintenance - Kia Sportage SL Owners ManualKia Sportage: Front windshield wiper blade

Third generation SL (2010–2016) / Kia Sportage SL Owners Manual / Maintenance / Wiper blades / Blade replacement / Front windshield wiper blade

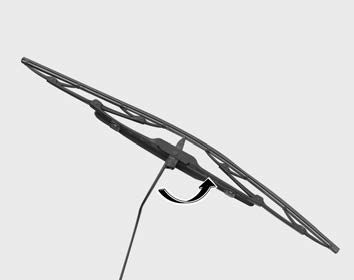

1.Raise the wiper arm and turn the wiper blade assembly to expose the plastic locking clip.

CAUTION - Wiper arms

Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.

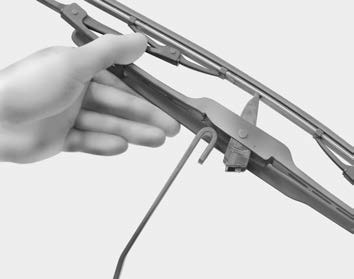

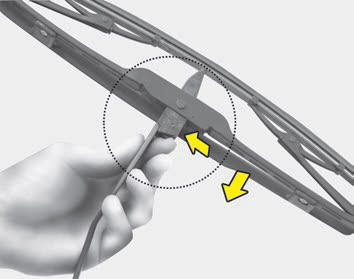

2.Compress the clip and slide the blade assembly downward

3.Lift it off the arm.

4.Install the blade assembly in the reverse order of removal.
