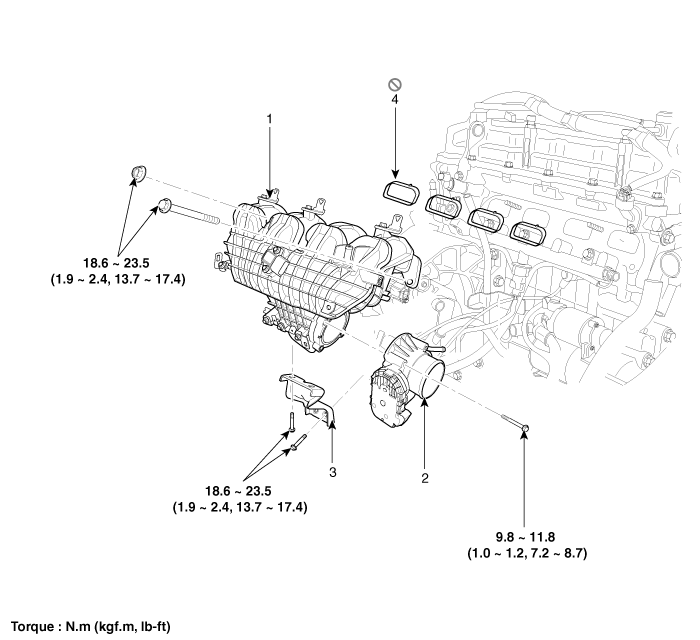

Components

1. Intake manifold assembly
2. Electronic throttle body
3. Intake manifold stay
4. Intake manifold gasket

Intake And Exhaust System
...

Intake Manifold: Repair procedures
Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal (A). Tightening torque 4.0 ~ 6.0N.m (0.4 ~ 0.6kgf.m, 3.0 ~ 4.4lb-ft) 3. Remove the ai ...
