Kia Sportage: Manifold Absolute Pressure Sensor (MAPS): Schematic Diagrams - Engine Control System - Engine Control / Fuel System - Kia Sportage SL Service & Repair ManualKia Sportage: Manifold Absolute Pressure Sensor (MAPS): Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Control / Fuel System / Engine Control System / Manifold Absolute Pressure Sensor (MAPS): Schematic Diagrams

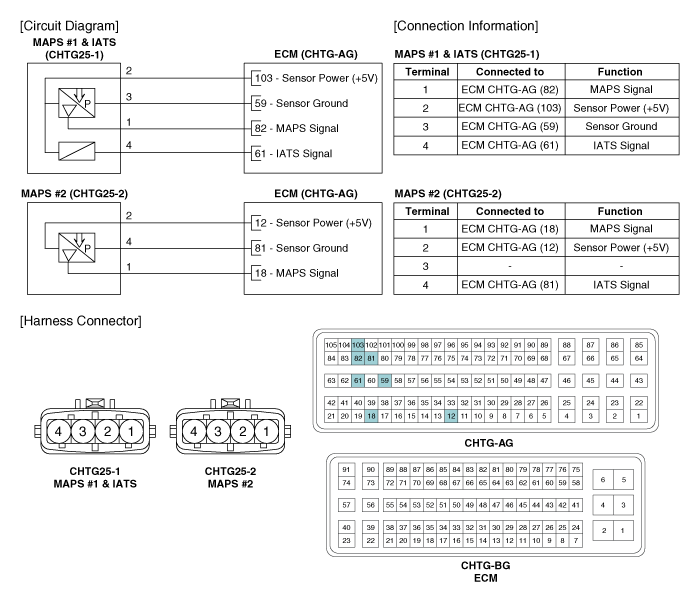

Circuit Diagram

Manifold Absolute Pressure Sensor (MAPS): Specifications
Specification Pressure[kPa (kgf/cm?, psi)]Output Voltage (V)20.0 (0.20, 2.9)0.7946.7 (0.47, 6.77)1.84101.3 (1.03, 14.7)4.0 ...

Manifold Absolute Pressure Sensor (MAPS): Repair procedures
Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the MAPS at idle and IG ON. Specification: Refer to "Specification" Removal 1. Tur ...
