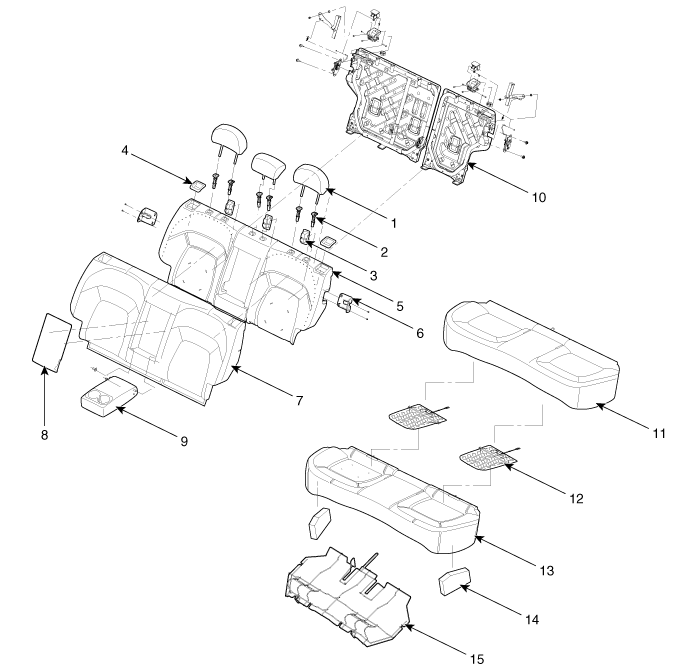

Components

1. Headrest
2. Headrest guide
3. Tether anchor garnish
4. Upper bezel
5. Rear seat back pad
6. Latch cover
7. Rear seat back cover
8. Armrest board
9. Rear armrest
10. Rear seat back frame
11.Rear seat cushion cover
12. Rear seat cushion warmer
13. Rear seat cushion pad
14. Insert pad rear cushion
15. Rear seat cushion frame
