Kia Sportage: Special Service Tools - Automatic Transaxle System - Kia Sportage SL Service & Repair ManualKia Sportage: Special Service Tools

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Automatic Transaxle System / Special Service Tools

Special Service Tools
Tool Name / Number
Illustration
Description
Engine support fixture (bar)
09200-3N000

Used for holding engine assembly when removing / installing transaxle
Used with the supporter (09200-2S000)
Engine support fixture (supporter)
A: 09200-2S000
B: 09200-2S100
C: 09200-2S200

Used for holding engine assembly when removing / installing transaxle
Used with the bar (09200-3N000)
Oil seal installer
A: 09453-3L240 (Installer)
B: 09231-H1100 (Handle)

Used for installing oil seal of both side in case of 2WD vehicle
Used for installing oil seal of transaxle case side in case of 4WD vehicle
Oil seal installer
A:09453-2W100 (Installer)
B: 09231-H1100 (Handle)

Used for installing oil seal of converter housing side in case of 4WD vehicle
Inhibitor switch guide pin
09480-A3800

?

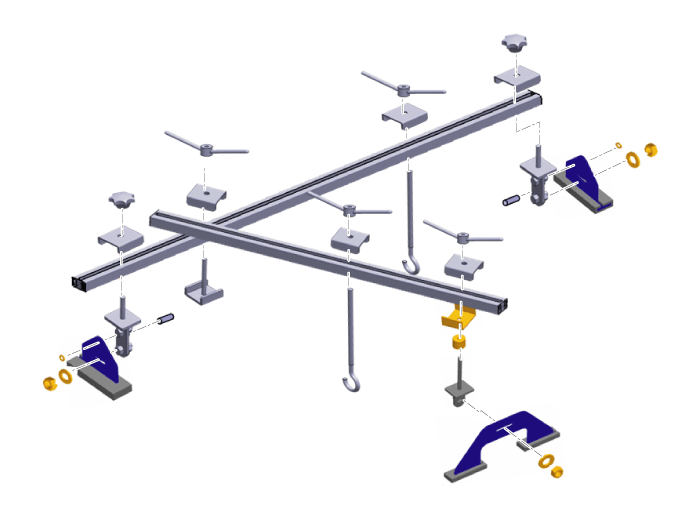

? Engine support fixture special tool assembly drawing
