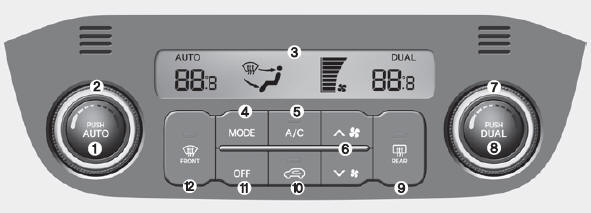

1. AUTO (automatic control) button
2. Driver's temperature control knob
3. A/C display
4. Mode selection button
5. Air conditioning button*
6. Fan speed control switch
7. Passenger's temperature control knob
8. Dual temperature control selection button
9. Rear window defroster button
10. Air intake control button
11. Blower OFF button
12. Front windshield defroster button
Relay Box (Passenger Compartment): Repair procedures
Inspection
Fuse
1.
Be sure there is no play in the fuse holders, and that the fuses are held securely.
2.
Are the fuse capacities for each circuit correct?
3.
Are there any blown fuses?
...
Components and Components Location
Component Location (1)
1. Hood switch2. Burglar horn3. RKE receiver4. BCM (Body Control Module)5. Front door switch6. Front door lock actuator & switch7. Rear door lock actuator & switch8 ...
