Kia Sportage: Components and Components Location
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / AVN System / Components and Components Location
| Component Location |
| 1. AVN (A/V & Navigation) head unit 2. Tweeter speaker 3. External Amplifier 4. Roof antenna (GPS + SDARS + Radio) 5. Front door speaker | 6. Rear door speaker 7. Woofer speaker 8. Antenna feeder cable 9. Feeder cable joint connector |
? SDARS : Satellite Digital Audio Radio Service
| Components |
| AVN (A/V & Navigation) Head Unit |

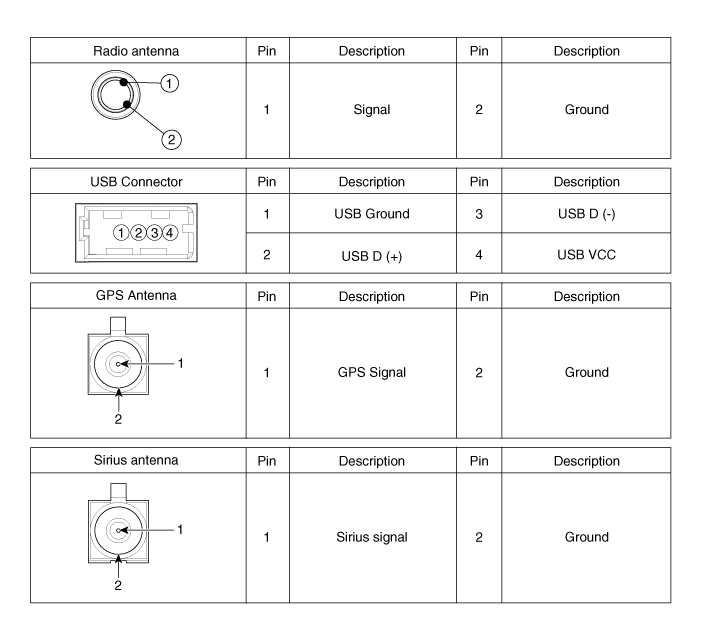

Connector Pin Information
| No. | Connector A | Connector B | AMP Connector |
| 1 | - | MM CAN (+) | - |
| 2 | Back View Camera Video | MTS Detect / - | - |
| 3 | Back View Camera V_GND | Parking (M/T GND) | - |
| 4 | Back View Camera P_GND | Steering Key | - |
| 5 | SPDIF GND | - | - |
| 6 | SPDIF (+) | IGN | - |
| 7 | ALT-L | AUX/iPOD Video | - |
| 8 | Illumination (+) | AUX Audio R | - |
| 9 | Reverse | AUX A GND | - |
| 10 | - | MIC (+) | - |
| 11 | Back View Camera Battery (+) | ACC | Door Open |
| 12 | Navigation Voice (-) | Battery (+) | GND |
| 13 | Navigation Voice (+) | MM CAN (-) | - |
| 14 | - | Auto Light | - |
| 15 | SPDIF (-) | P Position | - |
| 16 | Door Unlock | Speed | - |
| 17 | Illumination (-) | Steering Key GND | - |
| 18 | Antenna Remote | - | - |
| 19 | ? | AUX/iPOD V GND | - |
| 20 | AUX Audio DET | - | |
| 21 | AUX Audio L | - | |
| 22 | MIC (-) | - | |
| 23 | GND | GND | |
| 24 | GND | - |
Specifications
Specifications
ItemSpecificationPower supplyDC 14.4V (-) Negative groundFrequency range/ Channel spaceFM : 87.5~108.0MHz,AM : 531~1602KHzTuning typePLL SYNTHESIZED TUNINGAntenna80 pF 75 OhmDark c ...
Schematic Diagrams
System Block Diagram
...
