| Components |

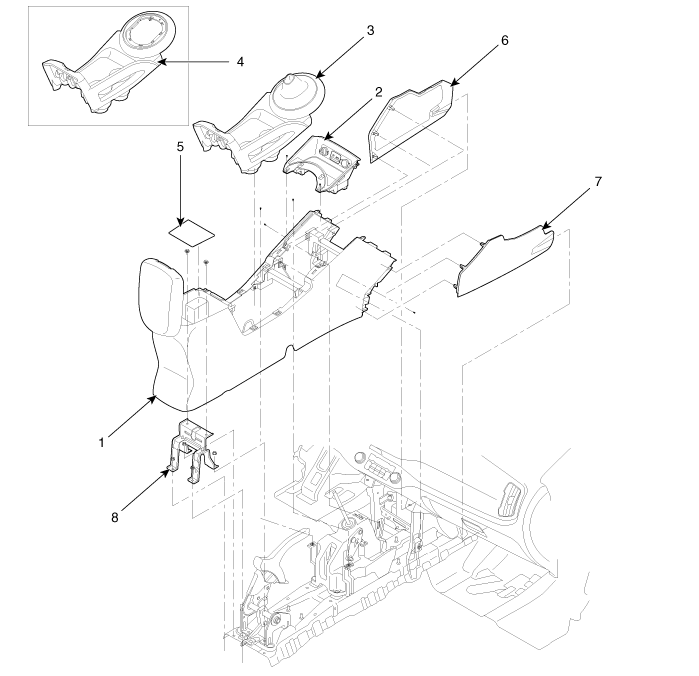

| [ M/T] |
| 1. Floor console assembly 2. Floor console tray 3. Console upper cover [5 speed M/T] 4. Console upper cover [6 speed M/T] | 5. Console storage box mat 6. Console side cover [LH] 7. Console side cover [RH] 8. Console rear mounting bracket |

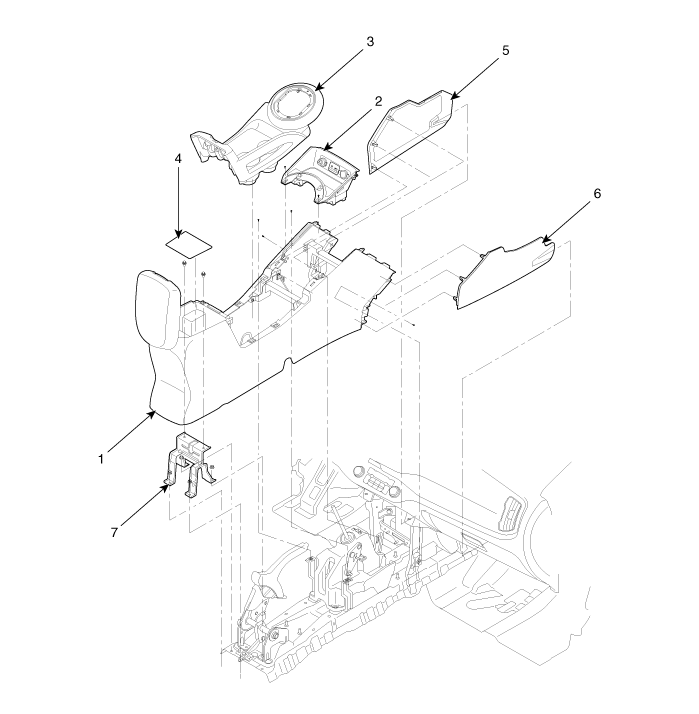

| [A/T] |
| 1. Floor console assembly 2. Floor console tray 3. Console upper cover [A/T] 4. Console storage box mat | 5. Console side cover [LH] 6. Console side cover [RH] 7.Console rear mounting bracket |
