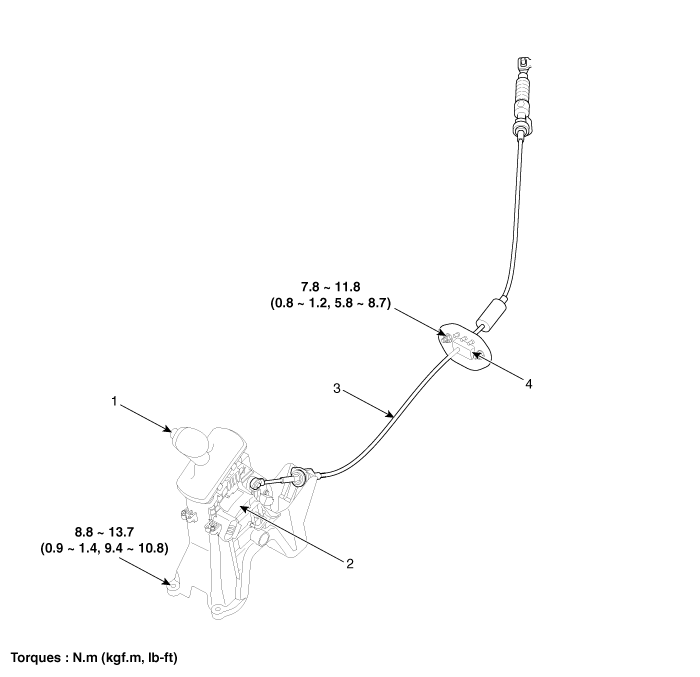

Components

1. Shift lever knob & boots assembly
2. Shift lever assembly
3. Shift cable assembly
4. Cable retainer

Shift Lever: Repair procedures
Removal 1. Remove the center console assembly. (Refer to "Interior(console)" in BD group.) 2. Disconnect sports mode connector (A). 3. Remove the shift lever assembly (D). (1) Take of ...

Shift Cable: Repair procedures
Inspection 1. Check the damage and operation of the control cable. 2. Check the damage of the boot. 3. Check the damage and corrosion of the bushing. 4. Check the damage or weakening o ...
