Kia Sportage: Front Body: Body Repair
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body (Interior and Exterior) / Body Dimensions / Front Body: Body Repair

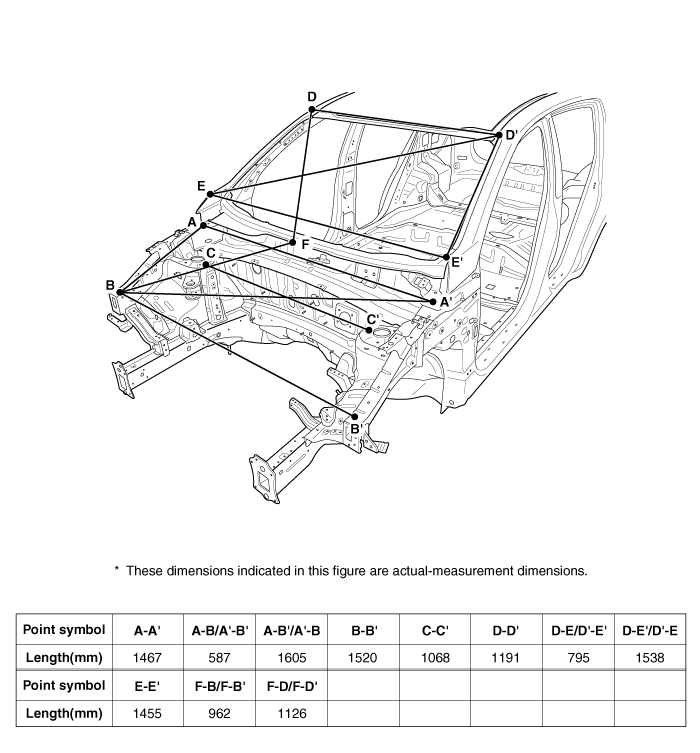

| Front Body A |
|
|
|
| Hood hinge mounting hole (O12) | Fender apron upper panel tooling hole (O8) | Front suspension mounting hole (O11) |
|
|
|
| Side outer panel corner | Front pillar corner | Cowl panel tooling hole (O10) |

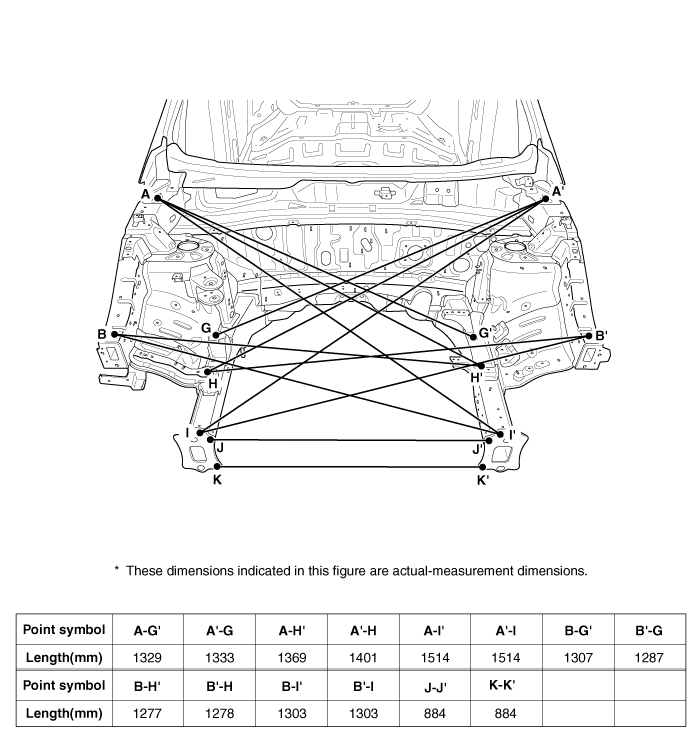

| Front Body B |
|
|
|
| Hood hinge mounting hole (O12) | Fender apron upper panel tooling hole (O8) | Engine mounting bracket hole (O12) |
|
|
|
| Transaxle mounting hole (O16) | Engine mounting bracket hole (O14) | Transaxle mounting hole (O16) |
|
|
|
| Front side member tooling hole (O10) | Front side member tooling hole (10X14) | Front end module mounting hole (O9) |
| ||
| Front end module mounting hole (O9) |

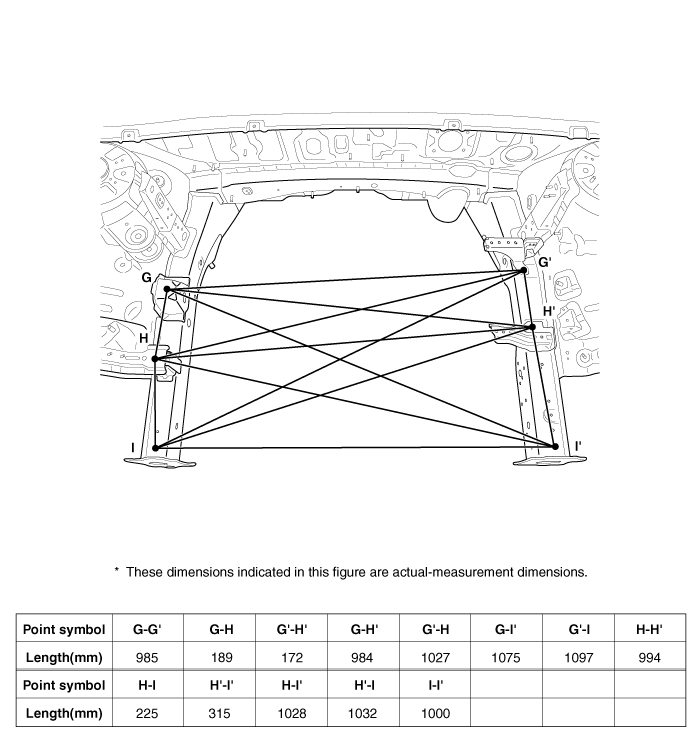

| Front Body C |
|
|
|
| Engine mounting bracket hole (O12) | Transaxle mounting hole (O16) | Engine mounting bracket hole (O14) |
|
|
|
| Transaxle mounting hole (O16) | Front side member tooling hole (O14) | Front side member tooling hole (14X10) |
