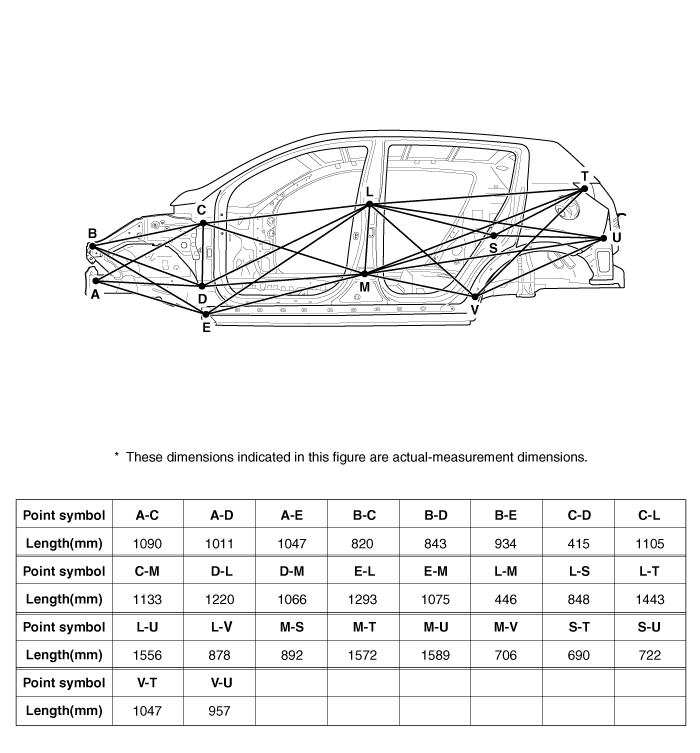

| Side Body A |
|
|
|
| Front side member tooling hole (O20) | Fender apron panel tooling hole (O10) | Front door upper hinge mounting hole (O13) |
|
|
|
| Front door lower hinge mounting hole (O13) | Fender panel mounting hole (O6.6) | Rear door upper hinge mounting hole (O10) |
|
|
|
| Rear door lower hinge mounting hole (O13) | Rear door switch mounting hole (O13) | Rear combination lamp mounting hole (O10) |
|
| |
| Rear bumper mounting hole (O6) | Side sill moulding mounting hole (8.5X8.5) |

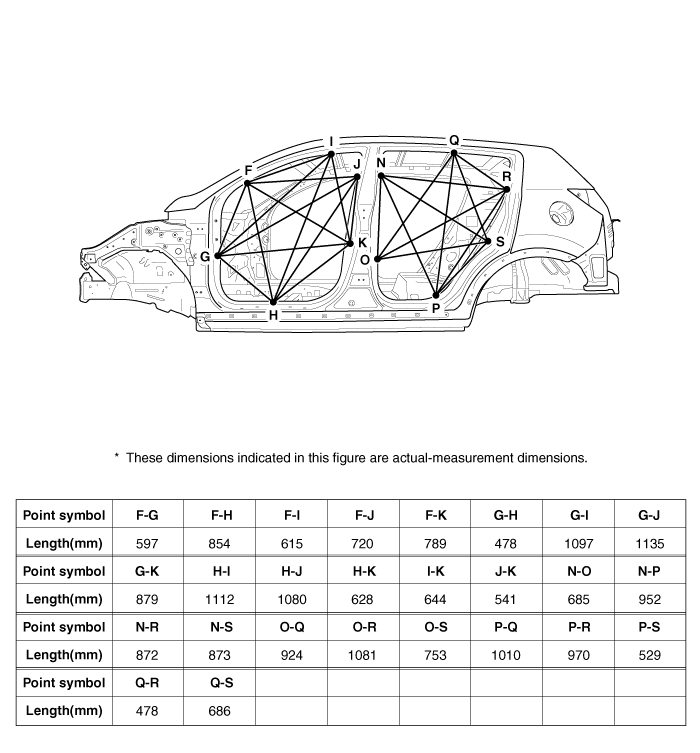

| Side Body B |
|
|
|
| Side outer panel notch | Side outer panel notch | Side outer panel notch |
|
|
|
| Side outer panel notch | Side outer panel notch | Front door switch mounting hole (O10) |
|
|
|
| Side outer panel notch | Side outer panel notch | Side outer panel notch |
|
|
|
| Side outer panel notch | Side outer panel notch | Rear door switch mounting hole (O10) |
Front Body: Body Repair
Front Body A
Hood hinge mounting hole (O12)Fender apron upper panel tooling hole(O8)Front suspension mounting hole (O11)Side outer panel cornerFront pillar cornerCowl panel tooling hole (O10)
Fr ...
Interior: Body Repair
Interior A
Front pillar trim mounting hole (O8.5)Front pillar trim mounting hole (O7)Cowl crossbar mounting hole (O9)Front door checker mounting hole (O13)Cowl side trim mounting hole (O8.5)Seatb ...
