Kia Sportage: ICM (Integrated Circuit Module) Relay Box: Components and Components Location
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Fuses And Relays / ICM (Integrated Circuit Module) Relay Box: Components and Components Location

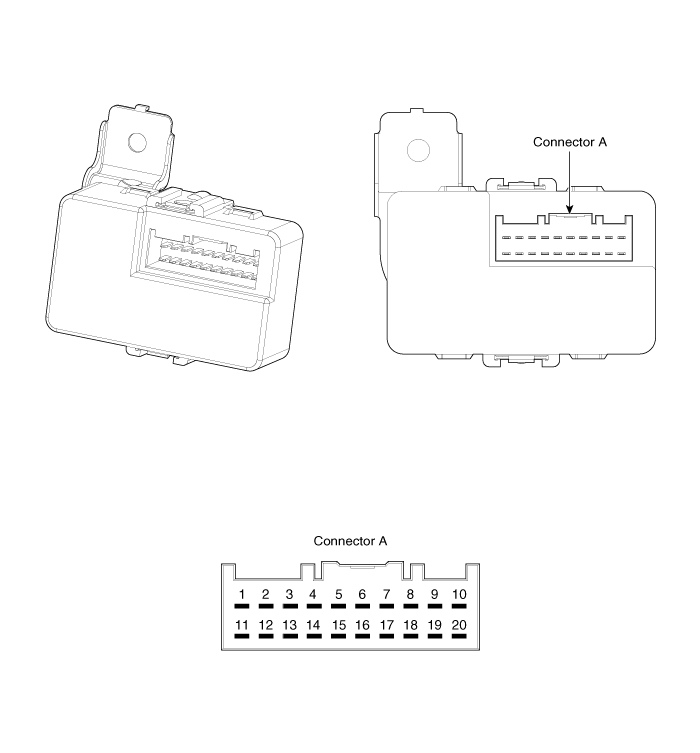

| Component |
Pin Information
| No | Connector A | No | Connector A |
| 1 | Rear wiper motor (Power) | 11 | IPM (Rear wiper 15A) |
| 2 | IPM | 12 | Rear wiper motor (Signal) |
| 3 | Stop lamp | 13 | - |
| 4 | - | 14 | - |
| 5 | ESC unit | 15 | GND |
| 6 | U_H_Box (ABS 7.5A fuse) | 16 | IPM (BCM) |
| 7 | Stop lamp switch | 17 | IPM (Door lock 15A) |
| 8 | Stop lamp 10A fuse | 18 | Door lock actuator - driver |
| 9 | - | 19 | - |
| 10 | - | 20 | - |
Specification
| Rated voltage | DC 12V |
| Operating voltage range | DC 9~16V |
| Operating temperature range | -22~167 °F(-30~75 °C) |
| Preservation temperature range | -40~185 °F(-40~85 °C) |
| Insulation resistance | 100M? MIN. / 500VM |
Voltage dropping specification
| No. | Function | Current specification | Load type | Voltage dropping | Remarks | |
| Rated | Max. | |||||
| 1 | Rear wiper | 10A | 25A | Motor | Max. 0.5 V | Test voltage : 13.5 V |
| 2 | DBC(stop lamp) | 10A | 25A | Illumination | ||
Relay Box (Passenger Compartment): Repair procedures
Inspection
Fuse
1.
Be sure there is no play in the fuse holders, and that the fuses are held securely.
2.
Are the fuse capacities for each circuit correct?
3.
Are there any blown fuses?
...
ICM (Integrated Circuit Module) Relay Box: Schematic Diagrams
Schematic Diagram
...
