Kia Sportage: Instrument cluster

Third generation SL (2010–2016) / Kia Sportage SL Owners Manual / Features of your vehicle / Instrument cluster

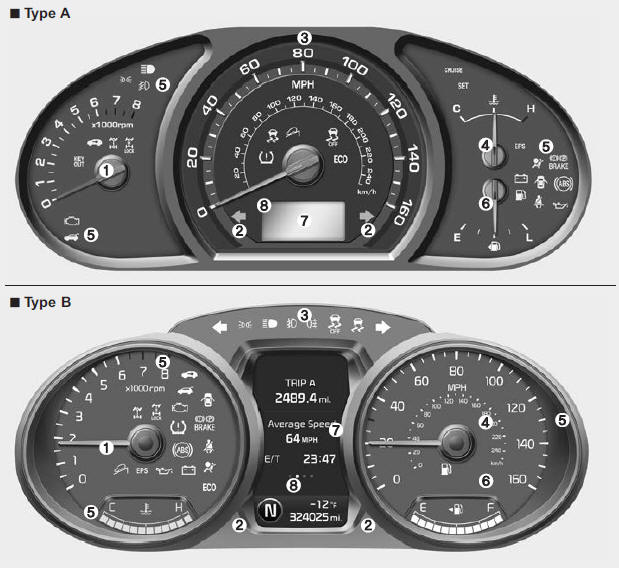

1. Tachometer
2. Turn signal indicators
3. Speedometer
4. Engine temperature gauge
5.Warning and indicator lights
6. Fuel gauge
7. Odometer/Tripmeter*/Trip computer*
8. Shift position indicator* (Automatic transaxle only)
