If the main fuse and multi fuse is blown, it must be removed as follows:

1.Disconnect the negative battery cable.

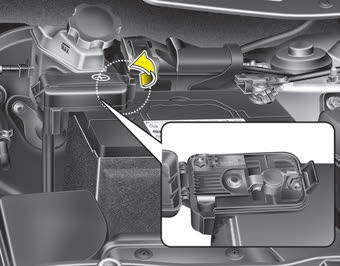

2.Remove the nuts shown in the picture above.

3.Replace the fuse with a new one of the same rating.

4.Reinstall in the reverse order of removal.


If the multi fuse is blown, consult an authorized Kia dealer.


Visually inspect the battery cap to ensure it is securely closed. If the battery cap is not securely closed, moisture may enter the system and damage the electrical components.
