Kia Sportage: Map lamp
The light will turn on and off as below if the switch is pressed. The light will turn off if the button is pressed again.

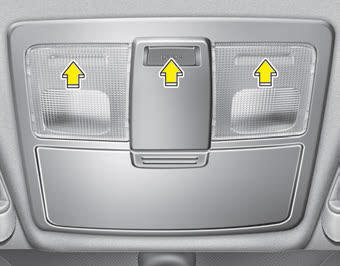

• Push the lens to turn the map lamp on or off. This light produces a spot beam for convenient use as a map lamp at night or as a personal lamp for the driver and the front passenger.
• DOOR
The light comes on when any door is opened or the ignition switch is turned OFF. (if equipped)
The light goes out gradually after approximately 30 seconds if the door is closed or the ignition switch is turned OFF.
However, if all doors are locked or the ignition switch is turned ON, the light will turn off immediately.
Room lamp
The light will turn on and off as follw if the switch is moved.
• ON : The light stays on at all times.
• OFF : The light stays off at all times.
• DOOR : The light comes on when any door is open ...
Interior light welcome function
When the interior light switch is in the DOOR position and all doors (and tailgate)
are locked and closed, the room lamp will come on for 30 seconds if any of the below
is performed.
Without s ...
