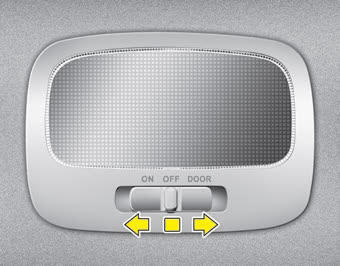

The light will turn on and off as follw if the switch is moved.
• ON : The light stays on at all times.
• OFF : The light stays off at all times.
• DOOR : The light comes on when any door is opened regardless of the ignition switch position. When doors are unlocked by the transmitter or the key is removed from the ignition switch, the light comes on for approximately 30 seconds as long as any door is not opened. The light goes out gradually after approximately 30 seconds if the door is closed.
However, if the ignition switch is ON or all doors are locked, the light will turn off immediately. If a door is opened with the ignition switch in the ACC or LOCK position, the light stays on for about 20 minutes. However, if a door is opened with the ignition switch in the ON position, the light stays on continuously.
Components and Components Location
Component Location
1. Main relay2. Cooling fan relay (High)3. Windshield deicer relay4. Wiper relay (High)5. Wiper relay (Low)6. ATM relay7. Rear glass defogger relay8. Burglar horn relay 9. Star ...
Components and Components Location
Component Location
1. Cluster assembly2. Seat belt switch3. Vehicle speed sensor4. Engine coolant temperature sender5. Oil pressure switch6. Brake fluid level warning switch7. Parking brake switc ...
