Signal Waveform

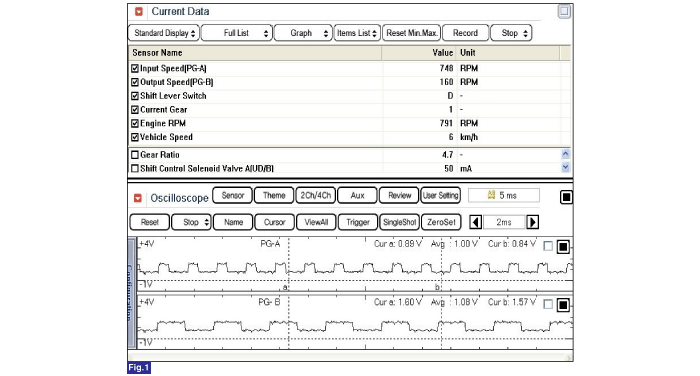

Fig 1) Input/Output speed sensor at low speed

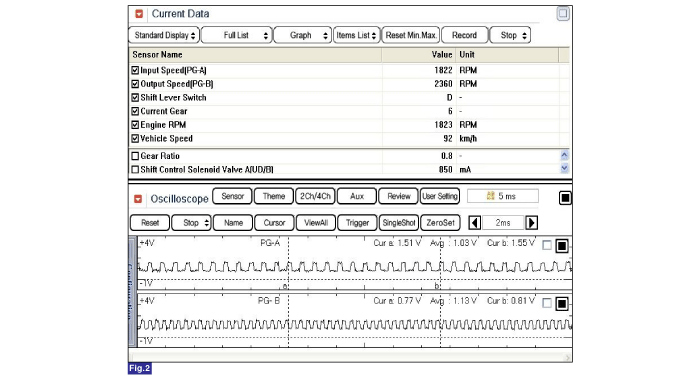

Fig 2) Input/Output speed sensor at high speed
Output Speed Sensor: Schematic Diagrams
Circuit Diagram ...

Output Speed Sensor: Repair procedures
Inspection 1. Check signal waveform of Input & output speed sensor using the GDS. Specification: Refer to "Signal Wave Form" section. Removal 1. Remove the valve body assembly. (R ...
