Kia Sportage: Rail Pressure Sensor (RPS): Schematic Diagrams - Engine Control System - Engine Control / Fuel System - Kia Sportage SL Service & Repair ManualKia Sportage: Rail Pressure Sensor (RPS): Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Control / Fuel System / Engine Control System / Rail Pressure Sensor (RPS): Schematic Diagrams

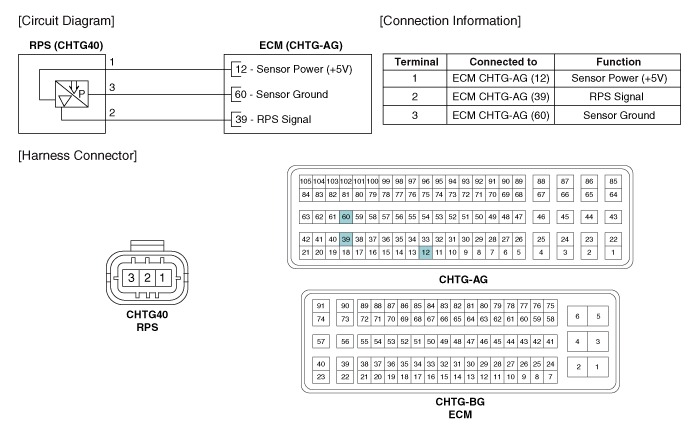

Circuit Diagram

Rail Pressure Sensor (RPS): Troubleshooting
Signal Waveform ...

Rail Pressure Sensor (RPS): Repair procedures
Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the RPS at idle and various engine speed. ConditionOutput Voltage (V)Idle Approx. 1.21, ...
