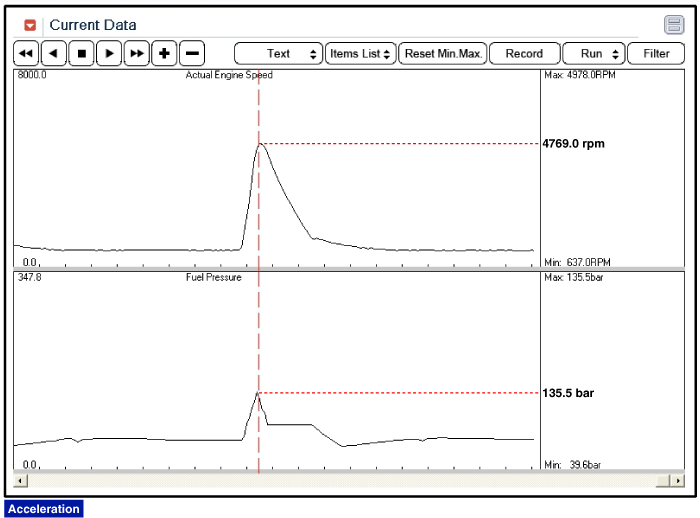

Signal Waveform |
Intake Air Temperature Sensor (IATS): Description and Operation
Description
Intake Air Temperature Sensor (IATS) is included inside
Manifold Absolute Pressure Sensor and detects the intake air
temperature.
To calculate precise air quantity, correction of t ...
Schematic Diagrams
Schematic Diagram
Canister
The Canister is filled with charcoal and absorbs evaporated
fuel vapor from the fuel tank. The gathered fuel vapor in canister is
drawn into the intake manifold by t ...
