Kia Sportage: Interior: Body Repair
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body (Interior and Exterior) / Body Dimensions / Interior: Body Repair

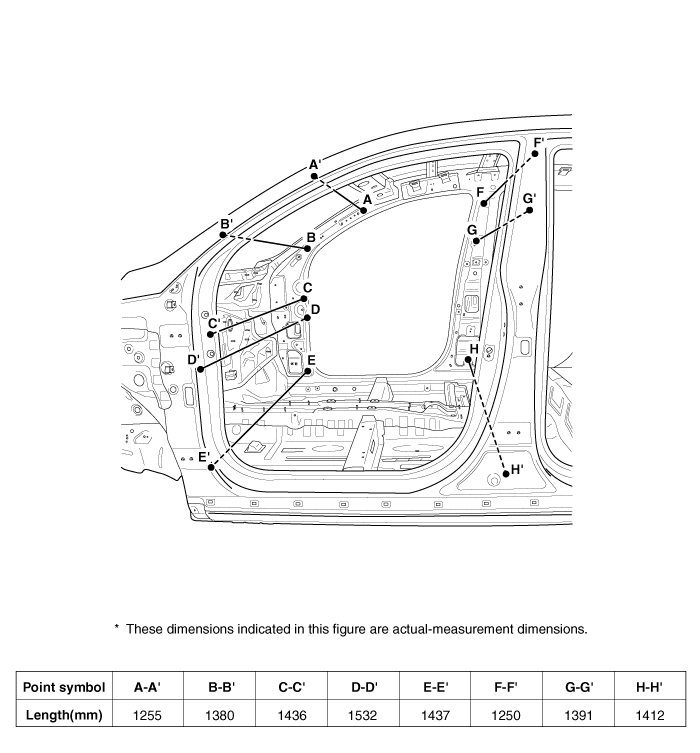

| Interior A |
|
|
|
| Front pillar trim mounting hole (O8.5) | Front pillar trim mounting hole (O7) | Cowl crossbar mounting hole (O9) |
|
|
|
| Front door checker mounting hole (O13) | Cowl side trim mounting hole (O8.5) | Seatbelt height adjust upper mounting hole (O14.5) |
|
| |
| Seatbelt height adjust lower mounting hole (O14.5) | Front seatbelt retractor mounting hole (O12.2) |

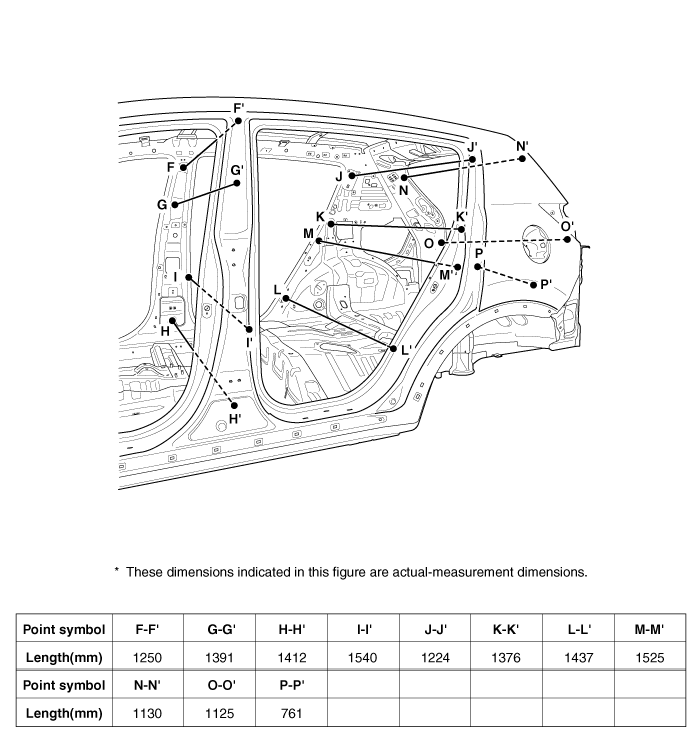

| Interior B |
|
|
|
| Seatbelt height adjust upper mounting hole (O14.5) | Seatbelt height adjust lower mounting hole (O14.5) | Front seatbelt retractor mounting hole (O12.2) |
|
|
|
| Rear door checker mounting hole (O13) | Rear seatbelt anchor mounting hole (O19) | Rear seat striker mounting hole (O9) |
|
|
|
| Wheel house panel tooling hole (O12) | Rear door striker mounting hole (O13) | Rear pillar trim mounting hole (O8.5) |
|
| |
| Rear pillar trim mounting hole (O8.5) | Transverse rear trim mounting hole (O8.5) |

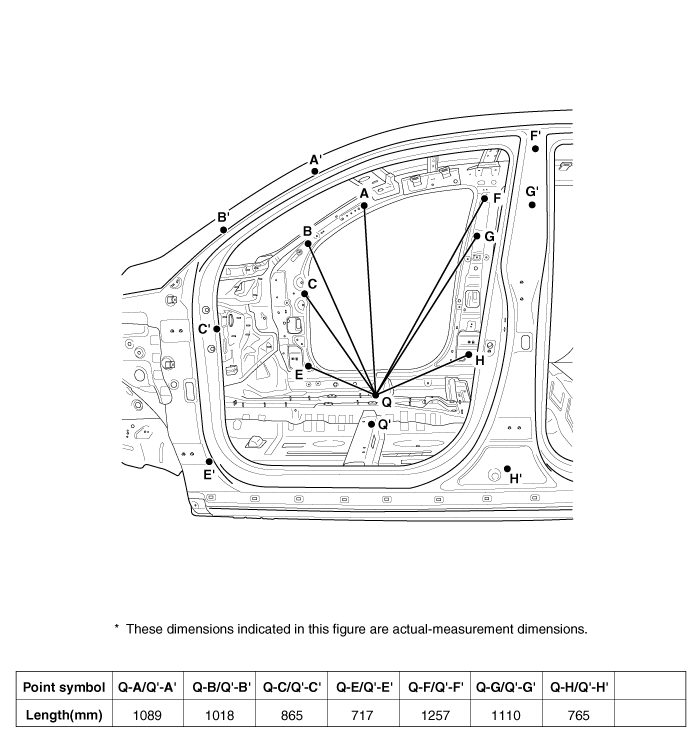

| Interior C |
|
|
|
| Front pillar trim mounting hole (O8.5) | Front pillar trim mounting hole (O7) | Cowl crossbar mounting hole (O9) |
|
|
|
| Cowl side trim mounting hole (O8.5) | Seatbelt height adjust upper mounting hole (O14.5) | Seatbelt height adjust lower mounting hole (O14.5) |
|
| |
| Front seatbelt retractor mounting hole (O12.2) | Front seat mounting hole (O11) |

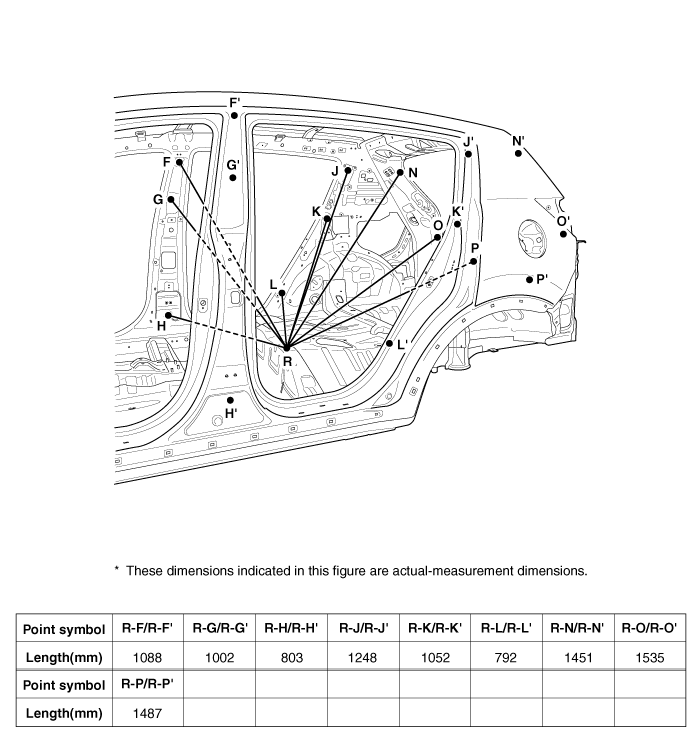

| Interior D |
|
|
|
| Seatbelt height adjust upper mounting hole (O14.5) | Seatbelt height adjust lower mounting hole (O14.5) | Front seatbelt retractor mounting hole (O12.2) |
|
|
|
| Rear seatbelt anchor mounting hole (O19) | Rear seat striker mounting hole (O9) | Wheel house panel tooling hole (O12) |
|
|
|
| Rear pillar trim mounting hole (O8.5) | Rear pillar trim mounting hole (O8.5) | Transverse rear trim mounting hole (O8.5) |
| ||
| Rear floor panel tooling hole (O6) |
Side Body: Body Repair
Side Body A
Front side member tooling hole (O20)Fender apron panel tooling hole (O10)Front door upper hinge mounting hole(O13)Front door lower hinge mounting hole(O13)Fender panel mounting hole ( ...
Rear Body: Body Repair
Side outer panel rear cornerTail gate hinge mounting hole (O12)Tail gate lifter mounting hole (O9)Side outer panel rear cornerRear bumper mounting hole (8.5X8.5)Rear bumper mounting hole (14X16)Re ...
