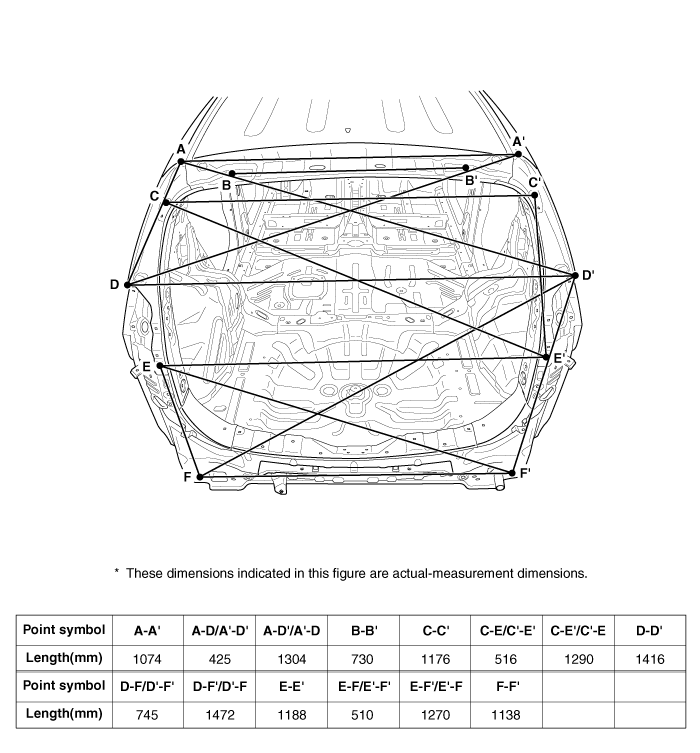

Side outer panel rear corner

Tail gate hinge mounting hole (O12)

Tail gate lifter mounting hole (O9)

Side outer panel rear corner

Rear bumper mounting hole (8.5X8.5)

Rear bumper mounting hole (14X16)



Rear bumper mounting hole (14X16)




Interior: Body Repair
Interior A Front pillar trim mounting hole (O8.5)Front pillar trim mounting hole (O7)Cowl crossbar mounting hole (O9)Front door checker mounting hole (O13)Cowl side trim mounting hole (O8.5)Seatb ...

Under Body: Body Repair
Projected Dimensions Front side member tooling hole (O6.5)Side cover mounting hole (O8)Front sub frame mounting hole (O17)Front sub frame mounting hole (O18)Front side member rear extension tooli ...

Other Information:

Speed sensing door lock system (Manual transaxle, if equipped)
All doors will automatically lock after the vehicle speed exceeds about 15 km (9 mph). All doors will automatically unlock when the engine is shut off and the ignition key is removed. An ...

Folding the outside rearview mirror
Manual type (if equipped) To fold the outside rearview mirror, grasp the housing of the mirror and then fold it toward the rear of the vehicle. Electric type (if equipped) To fold the outside ...
