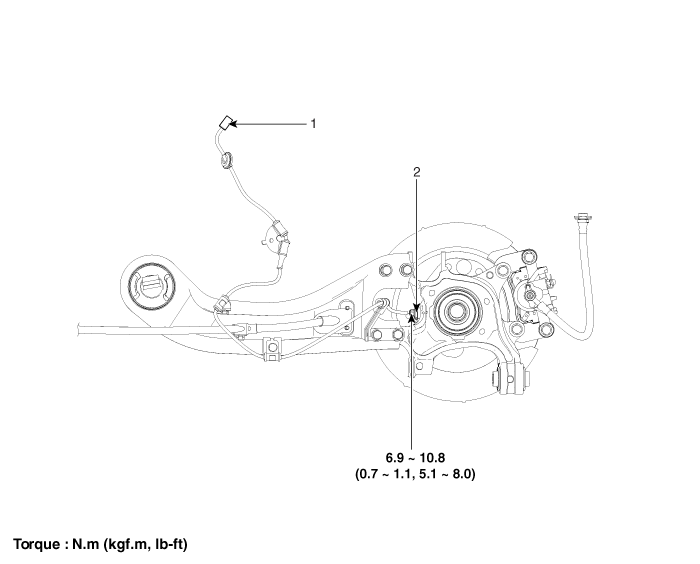

Kia Sportage: Rear Wheel Speed Sensor: Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Brake System / ESC(Electronic Stability Control) System / Rear Wheel Speed Sensor: Components and Components Location

Front Wheel Speed Sensor: Repair procedures

Removal 1. Remove the front wheel speed sensor mounting bolt (A). Tightening torque: 6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft) 2. Remove the front wheel guard . 3. Disconnect ...

Rear Wheel Speed Sensor: Repair procedures

Removal 1. Remove the rear wheel speed sensor mounting bolt (A). Tightening torque: 6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft) 2. Remove the luggage side trim the disconnect the r ...
