Kia Sportage: Relay Box (Passenger Compartment): Components and Components Location - Fuses And Relays - Body Electrical System - Kia Sportage SL Service & Repair ManualKia Sportage: Relay Box (Passenger Compartment): Components and Components Location

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Fuses And Relays / Relay Box (Passenger Compartment): Components and Components Location

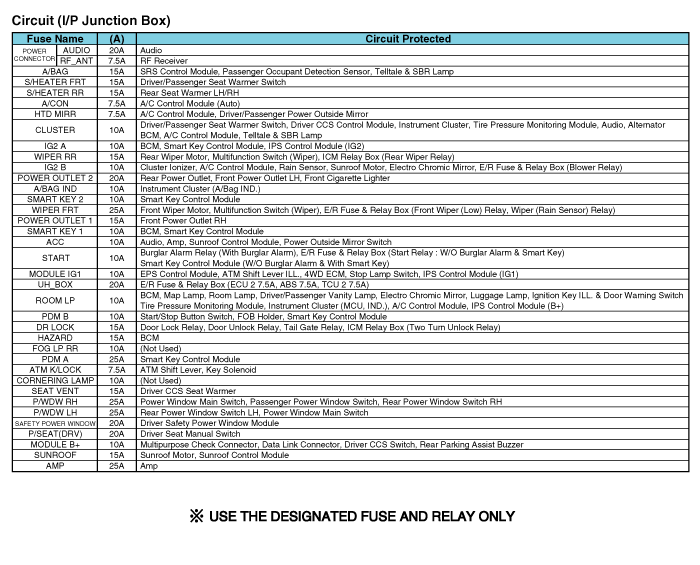

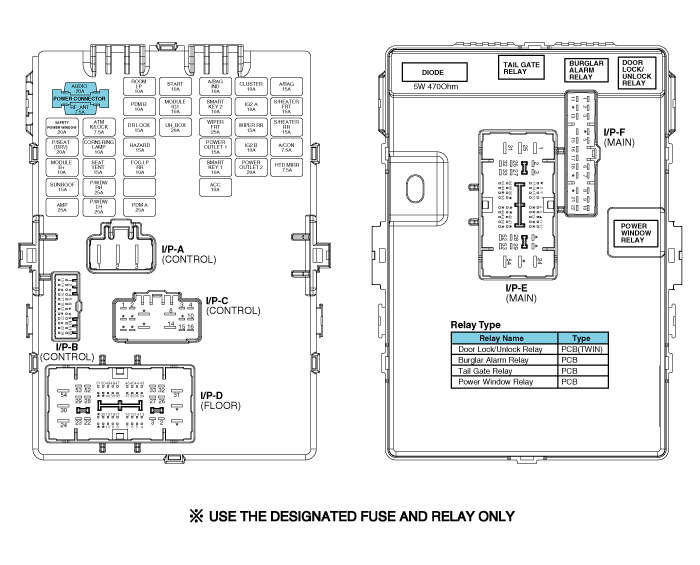

Component Location

Relay Box (Engine Compartment): Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Pull out the relay from the engine compartment relay box. Power Relay (Type A) Check for continuity between the terminals. A ...

Relay Box (Passenger Compartment): Description and Operation
Description SJB (Smart Junction Box) 1. Specification ItemRequirementRemarkRated voltageDC 12V?Voltage rangeDC 9 ~ 16VNormal operating in this rangeStorage temperature-40°C ~ +80°C?Operating t ...
