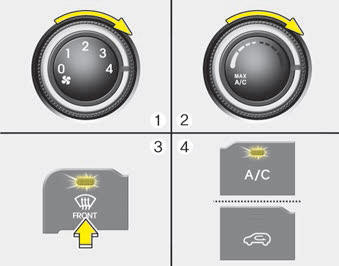

1.Set the fan speed to the highest position.
2.Set the temperature to the extreme hot position.
3.Select the position.
4.The outside (fresh) air and air conditioning will be selected automatically.
If the air conditioning is not selected automatically press the corresponding button manually.
Panoramaroof Switch: Repair procedures
Inspection
1.
Disconnect the negative (-) battery terminal.
2.
Remove the overhead console lamp assembly.
(Refer to the BD group - "Roof trim")
3.
Check for continuity between the termina ...
Relay Box (Passenger Compartment): Description and Operation
Description
SJB (Smart Junction Box)
1.
Specification
ItemRequirementRemarkRated voltageDC 12V?Voltage rangeDC 9 ~ 16VNormal operating in this rangeStorage temperature-40°C ~ +80°C?Operating t ...
