Kia Sportage: To unfasten the rear center belt

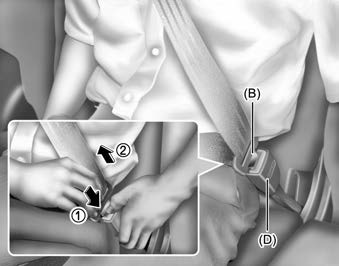

1.Press the release button on the buckle (D) and remove the tongue plate (B) from the buckle (D).

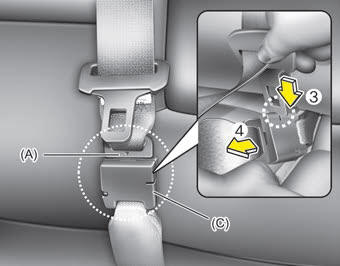

2.To retract the rear center seatbelt, insert the tongue plate or similar small rigid device into the web release hole (C). Pull up on the seat belt web (A) and allow the webbing to retract automatically.
3.Insert the tongue plate into the hole on the belt assembly cover.
3 Point rear center belt
To fasten the rear center belt
1.Extract the tongue plate from the hole on the belt assembly cover and slowly
pull the tongue plates out from the retractor.
2.Insert the tongue plate (A) into ...

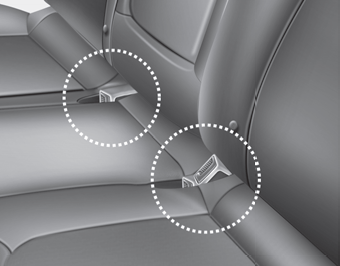

Stowing the rear seat belt
The rear seat belt buckles can be stowed in the pocket between the rear seatback
and cushion when not in use.
Routing the seat belt webbing through the rear seat belt guides will help keep
the ...
