Kia Sportage: Torque Converter Control Solenoid Valve (T/CON_VFS): Schematic Diagrams - Automatic Transaxle Control System - Automatic Transaxle System - Kia Sportage SL Service & Repair ManualKia Sportage: Torque Converter Control Solenoid Valve (T/CON_VFS): Schematic Diagrams

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Automatic Transaxle System / Automatic Transaxle Control System / Torque Converter Control Solenoid Valve (T/CON_VFS): Schematic Diagrams

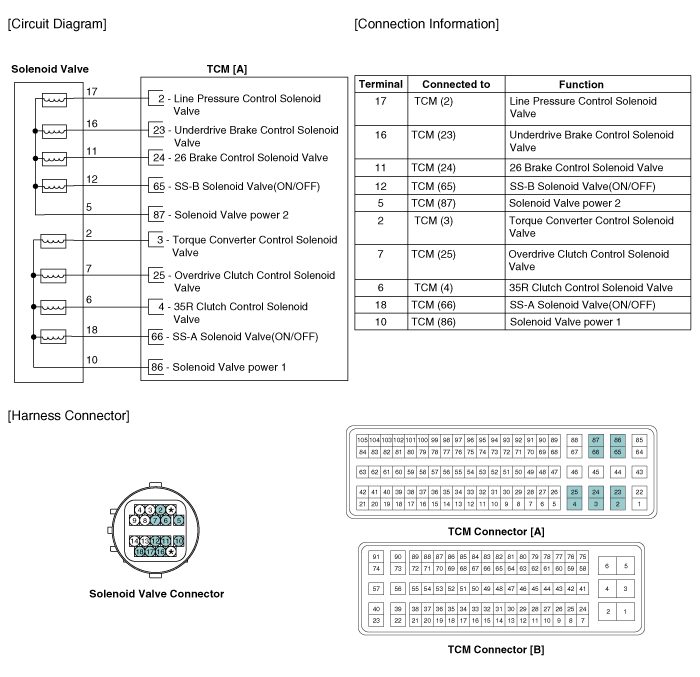

Circuit Diagram

Torque Converter Control Solenoid Valve (T/CON_VFS): Specifications
Specifications Direct control VFS[T/CON] ? Control type : Normal low type Control Pressure kpa (kgf/cm?, psi)9.81 ~ 500.14(0.1 ~ 5.1,1.42 ~ 72.54)Current value(mA)50 ~ 850 Internal resist ...

Torque Converter Control Solenoid Valve (T/CON_VFS): Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Remove the air duct (A). 3. Remove the air cleaner assembly. (1) Disconnect the breather hose (A) and brake booster intensifier hose. (2) ...
