Kia Sportage: TPMS Receiver: Repair procedures - Tire Pressure Monitoring System - Suspension System - Kia Sportage SL Service & Repair ManualKia Sportage: TPMS Receiver: Repair procedures

Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Suspension System / Tire Pressure Monitoring System / TPMS Receiver: Repair procedures

Replacement

When the receiver first arrives for replacement:
a.
It will be in Virgin State.
b.
It will not be configured for any specific platform.
c.
It will not have any sensor ID''s memorized.
1.
Disconnect vehicle battery.
2.
Remove the crash pad garnish.
(Refer to BD group - "Crash Pad")
3.
Remove faulty part and fit bracket assembly to new part.

4.
Secure new part to vehicle and fit connector.
5.
Re-connect battery and turn Ignition on.
6.
After replacing the receiver, learn by using self-diagnosis device(GDS).
Diagnosis procedure by using diagnostic device
As manual for diagnosis methods by using diagnosis device, the main contents are as follows:
1.
Connect self-diagnosis connector(16pins) located in the lower of driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.
2.
Select the "vehicle model" and "TPMS" on GDS vehicle selection screen, then select OK.

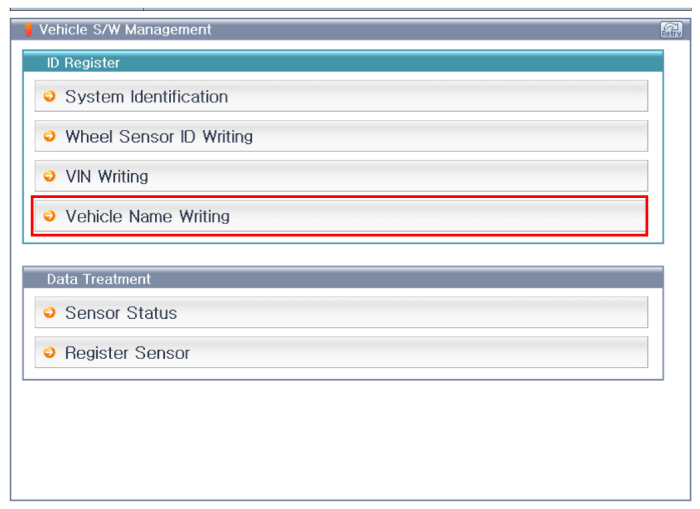

[Vehicle name input initialization]

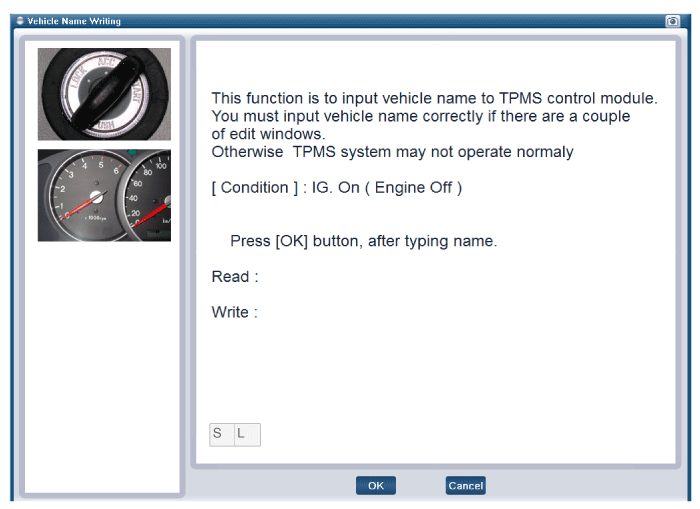

[Vehicle name input method 1]

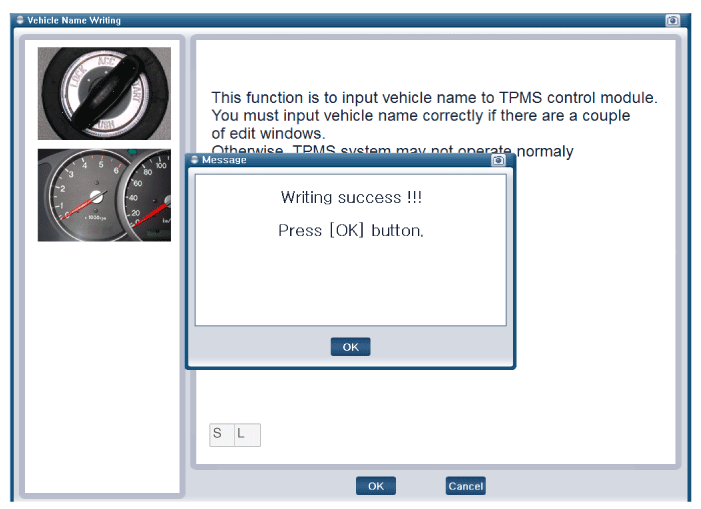

[Vehicle name input method 2]

[Vehicle name input method 3]

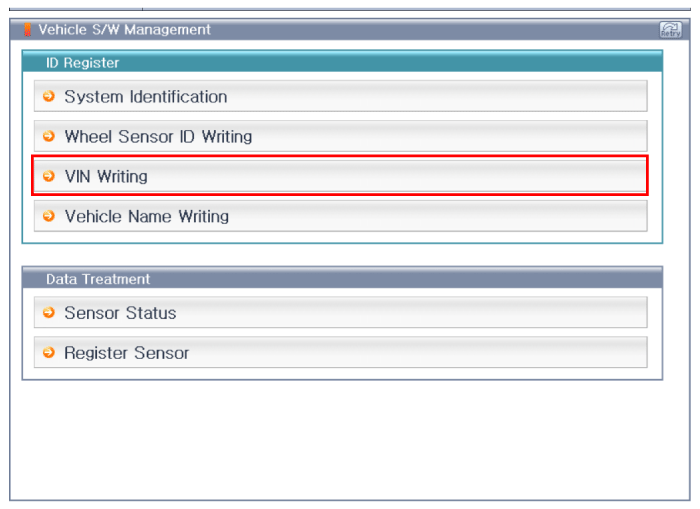

[VIN input initialization]

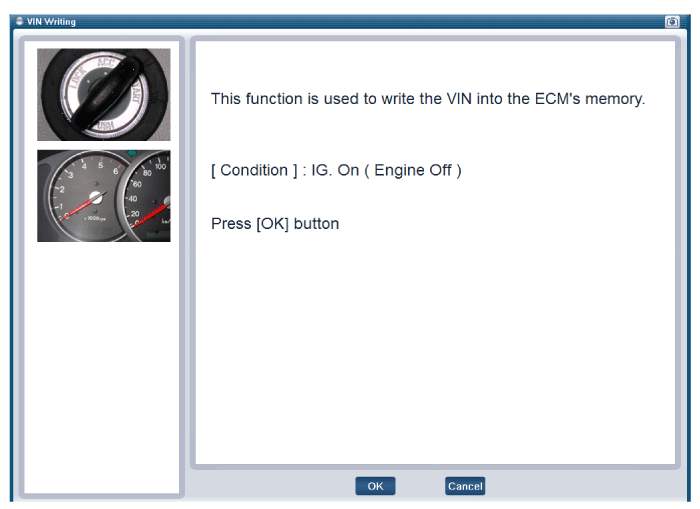

[VIN input method 1]

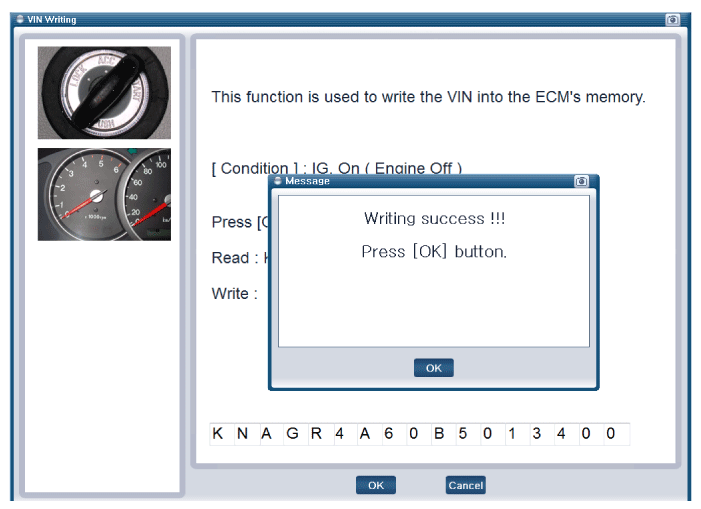

[VIN input method 2]

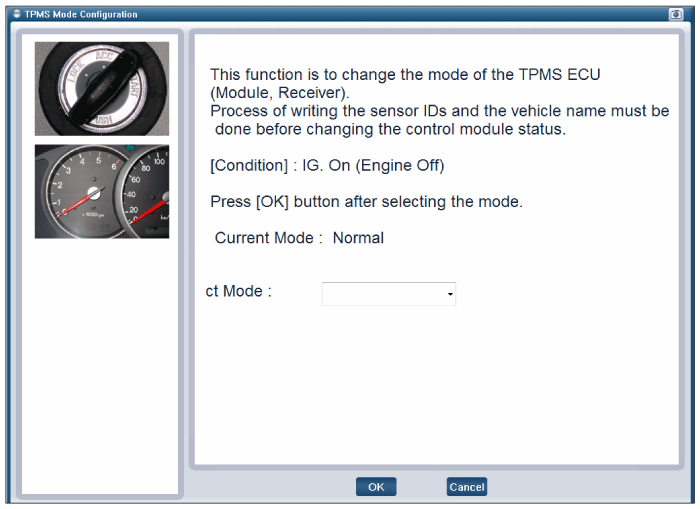

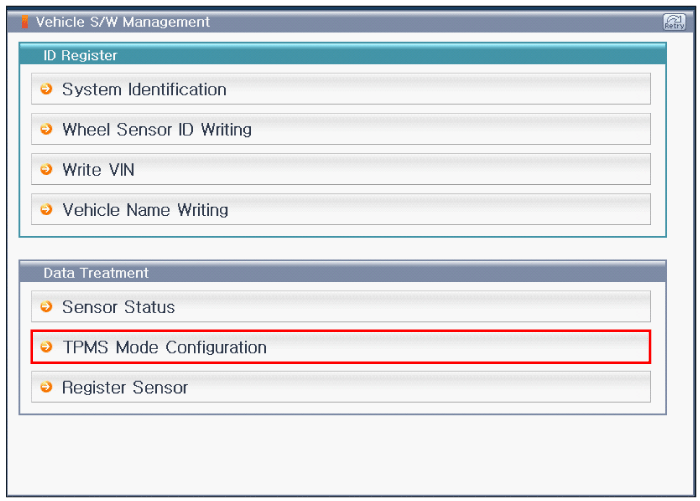

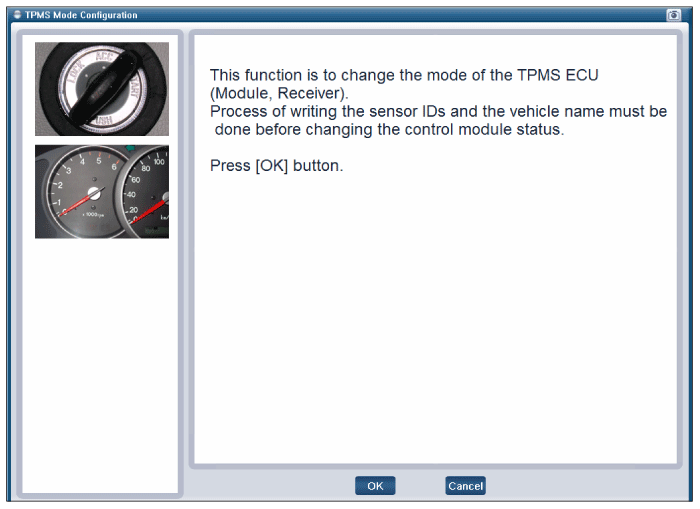

[TPMS Mode Configuration]


•
Write ID Read ID and be sure to check are the same.
•
After registering successfully sensor "Sensor Wireless Information" by the execution determines whether the sensor is working properly.
